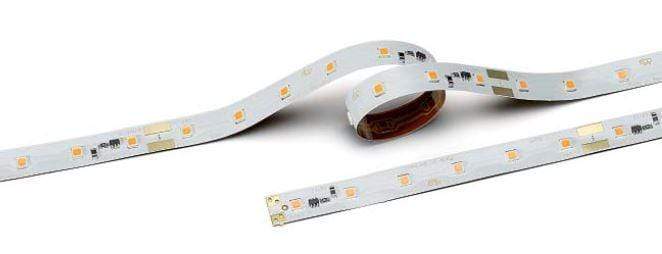

Vossloh Schwabe FlexLED-4m-30K-4800Im 24Vdc LED Flexible-strip 4M / Roll Made in Germany
Vossloh Schwabe FlexLED-4m-30K-4800Im 24Vdc LED Flexible-strip 4M / Roll Made in Germany
SKU SKU:571186
Regular price
$ 314.30 SGD
Regular price
$ 336.30 SGD
Sale price
$ 314.30 SGD
Unit price
/
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Share
LEDLine Flex SMD Advanced
Technical Notes
• Dimensions of the entire LED Line Flex SMD
Advanced: LxW = 4000 x 10 mm
• With 240 SMDs divisible in 40 single-steps
(100 mm à 6 SMDs)
• Wide beam angle: 120°
• Voltage supply: 24 V DC ± 5 %
• Soldered wires, on one side, length: 250 mm
• ESD protection: up to 2000 V
• Degree of protection: IP00 (LED module must
be protected against moisture)
| Technical Details: | |
| Electrical Characters | |
| Ref No | 571186 |
| Type | FlexLED-4m |
| Number of LEDs(for 4 m/for 0.1 m) | 240/6 |
|
Current (mA) at tp = 25 °C(for 4 m/for 0.1 m) / at tp = 50 °C(for 4 m/for 0.1) |
1880/47 / 1680/42 |
|
Power (W) at tp = 25 °C(for 4 m/for 0.1 m) / at tp = 50 °C(for 4 m/for 0.1) |
45.2 / 1.1 / 40.3 / 1 |
| Maximum Ratings | |
| Type | FlexLED-4m-30K-4800lm |
| Voltage DC(V min. V max.) | 22.8 / 25.2 |
| Max. operation temperature range at tc point °C | +75 |
| Storage temperature range(°C min. °C max.) | –20 +85 |
| Ambient temperature range for operation(°C min. °C max.) | –20 / +50 |
| Operating Life | |
| 50,000 hrs. (Lumen maintenance: L90/B10 at tp/tc = 50 °C) | |
| Optical Characteristics | |
| Color | Neutral white |
| Color Temperature | 3000 K |
|
Typ. luminous flux (lm/m) and efficiency (lm/W)** (at tp = 25 °C lm/m lm/W /at tp = 50 °C/ lm/m lm/W) |
1340 / 120 / 1160 / 115 |
| Power consumption (W/m)((at tp = 25 °C W/m / at tp = 50 °C / W/m) | 11.3 / 10.1 |
| Beam angle ° | 120° |
| Typ CRI Ra | > 80 |
