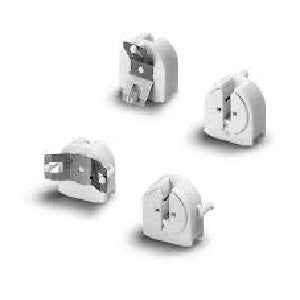

Vossloh Schwabe G13 built-in lampholders for lamps T8 and T12 X10pcs

Datasheet:

Description:

with spring adjustment

Ex stock subject to prior sales

G13 Built-in Lampholders
For fluorescent lamps T8 (T26), T12 (T38) Lampholders with integrated starter holder are equipped with big rotor and have push-in twin terminals for the lamp circuit and push-in terminals for the the starter circuit. Pin support for reliable contact (except for type 485).

G13 built-in lampholders for lamps T8 and T12
Lampholder thickness: 13 mm
Casing: PC, white, frontplate/rotor: PBT GF, white
T130, nominal rating: 2/500
Push-in twin terminals: 0.5–1 mm²
Fixing holes for screws M3
Weight: 5/5.5 g, packaging unit: 1000 pcs.
Type: 47505/47506
Ref. No.: 101749
Ref. No.: 101753

G13 built-in lampholders for lamps T8 and T12
Lampholder thickness: 13 mm
Casing: PC, white, frontplate/rotor: PBT GF, white
T130, nominal rating: 2/500
Push-in twin terminals: 0.5–1 mm²
Fixing holes for screws M3
Weight: 5/6 g, packaging unit: 1000 pcs.
Type: 47100/47102
Ref. No.: 101674
Ref. No.: 101681
