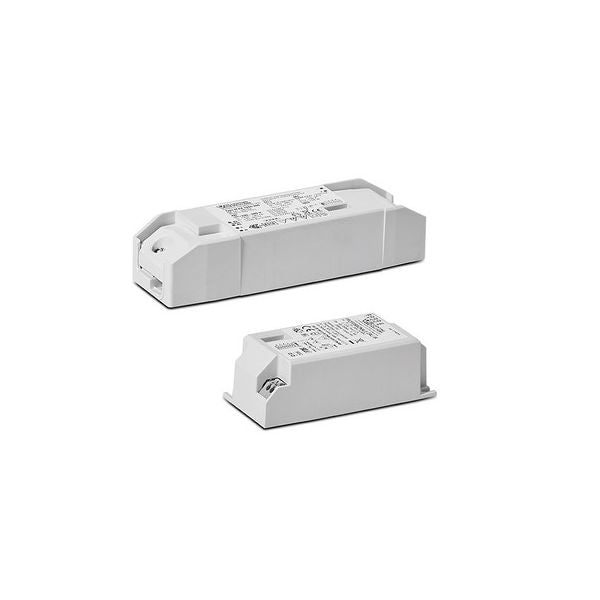

Vossloh Schwabe ECXd 1050.299 LED Constant Current DALI Driver

Technical Details

Datasheet

PrimeLine
DIP switch C-R3
Product features
• Compact casing shape
• For independent operation with cord grip
• For built-in without cord grip
Functions
• The required current output can be chosen
by dip switches.
• Suitable for central battery system for
emergency lighting acc. to EN 50172
Electrical features
• Mains voltage: 220–240 V ±10%
• Mains frequency: 50–60 Hz
• DC operation: 170–280 V, 0 Hz
• Push-in terminals: 0.5–1.5 mm²
• Power factor at 12 W: 0.95
• Standby losses: < 0.5 W
• Open circuit voltage (Umax.): 60 V
• Secondary side switching of LED modules
is not allowed.
Dimming
• Dimming range: 1 to 100%
• If no dimming interface is connected, brightness
will stay at 100%.
Safety features
• Protection against transient main peaks
up to 2 kV (between L and N)
• Electronic short-circuit protection
• Overload protection
• Overtemperature protection
• Protection against "no-load" operation
• Degree of protection: IP20
• Protection class I (built-in version);
protection class II (independent version)
• SELV
