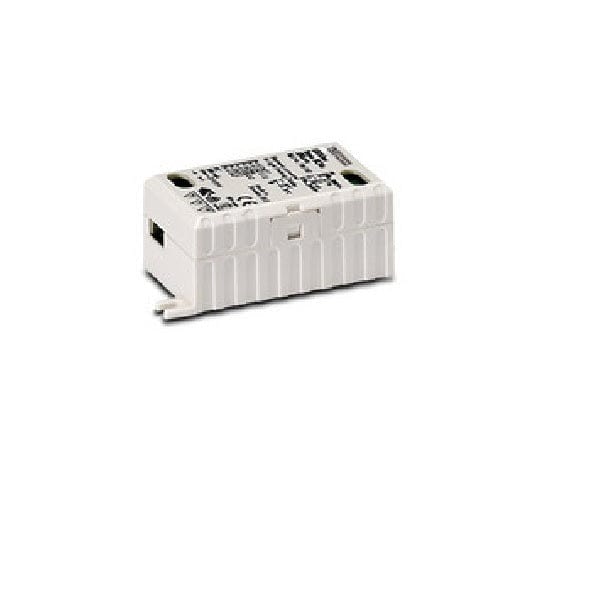

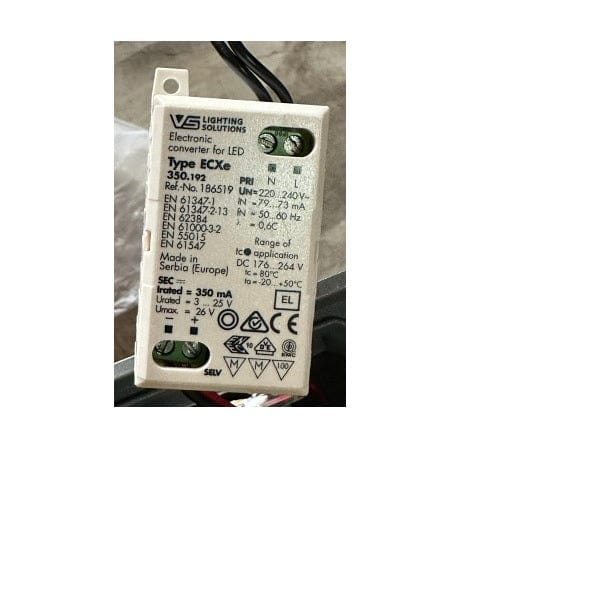

Vossloh-Schwabe ECXe350 192 Constant Current SIMPLE FIX C-MINI Driverx4pcs
Vossloh-Schwabe ECXe350 192 Constant Current SIMPLE FIX C-MINI Driverx4pcs
SKU:186519
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Technical Details;
*VERY LOW RIPPLE CURRENT: < 3%
* FOR CONDUCTOR CROSS SECTION: UP TO 2.5 MM²
* SUITABLE FOR EMERGENCY ESCAPE LIGHTING SYSTEMS ACC. TO EN 50172
* SELV
* SUITABLE FOR BUILT-IN INTO FURNITURE
* LONG SERVICE LIFE: UP TO 100,000 HRS.
* PRODUCT GUARANTEE: 5 YEARS
Electrical features:
• Mains voltage: 220–240 V ±10%
• Mains frequency: 50–60 Hz
• DC operation: 198–264 V, 0 Hz (can be reduced to 176 V with reduced service life time)
• Screw terminals: 2.5 mm²
• Power factor at full load: > 0.6
• Open circuit voltage (Umax.): 26 V
• Secondary side switching of LED modules is not allowed.
Safety features:
• Protection against transient main peaks up to 1 kV (between L and N)
• Electronic short-circuit protection
• Overload protection
• Protection against "no load" operation
• Degree of protection: IP20
• Protection class II
• SELV
