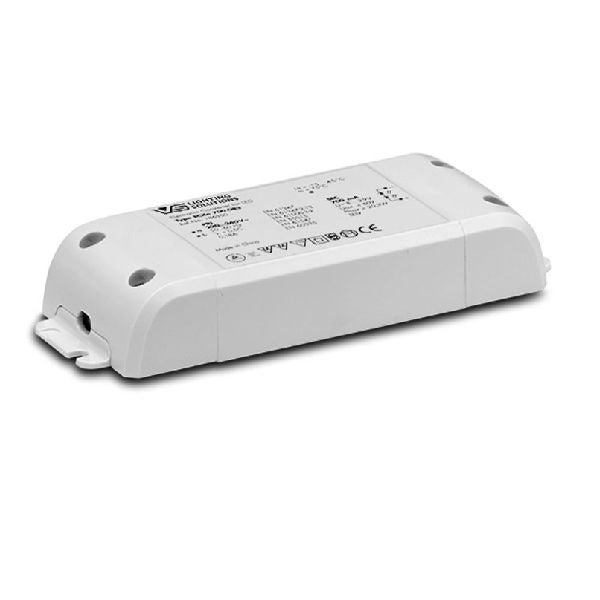

Vossloh Schwabe EasyLine SIMPLE FIX C-R30 ECXe 350.142 20W Driver

Technical Details

Datasheet

EasyLine
Simple Fix C-R30
Product features
• Compact casing shape
Electrical features
• Mains voltage: 220–240 V ±10%
• Mains frequency: 50–60 Hz
• Push-in terminals: 0.5–2.5 mm² or
1.5–2.5 mm² (186708, 186709)
• Power factor at full load
Safety features
• Protection against transient main peaks
up to 1 kV (between L and N)
• Electronic short-circuit protection
• Overload protection
• Protection against "no-load" operation
• Degree of protection: IP20
• Protection class II
• SELV
Product guarantee
• 5 years
for operation at recommended operation
temperature (see table for expected service
lifetime on page 4)
• The conditions for the Product Guarantee
of the Vossloh-Schwabe Group shall apply as
published on our homepage
(www.vossloh-schwabe.com).
We will be happy to send you these conditions
upon request.
