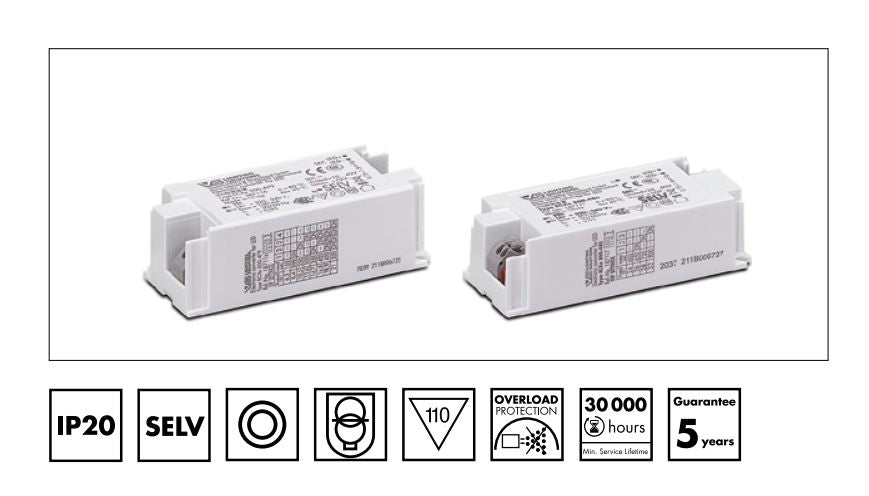

Vossloh-Schwabe CC EASYLINE DIP SWITCH C-R1 ECXe800.480 x6pcs
Vossloh-Schwabe CC EASYLINE DIP SWITCH C-R1 ECXe800.480 x6pcs
SKU:187117
19 in stock
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Product Details:
Data Sheet for EASYLINE DIP SWITCH C-R1 ECXe800.480
Typical Applications
Built-in in compact luminaires for
• Shop lighting
• Office lighting
• Residential lighting
• Downlights
Product features
• Compact casing shape
Functions

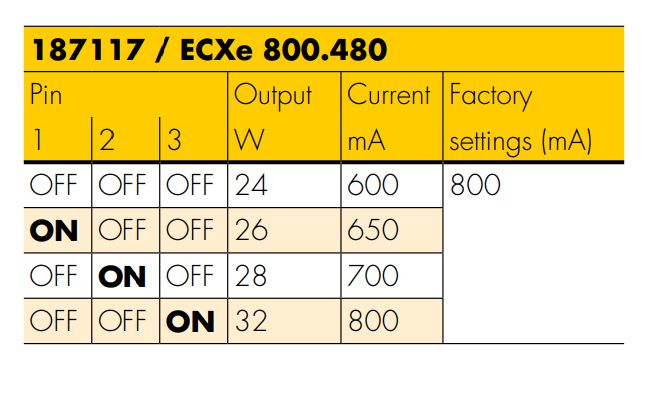

• Selectable current output by dip-switch
Electrical features
• Mains voltage: 220–240 V ±10%
• Mains frequency: 50–60 Hz
• Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm²
• Power factor at full load: > 0.95
• Open circuit voltage (Umax.): 60 V
• Secondary side switching of LED modules is not allowed.
Safety features
• Protection against transient main peaks up to 1 kV (between L and N)
• Electronic short-circuit protection
• Overload protection
• Degree of protection: IP20
• Protection class II
• SELV
