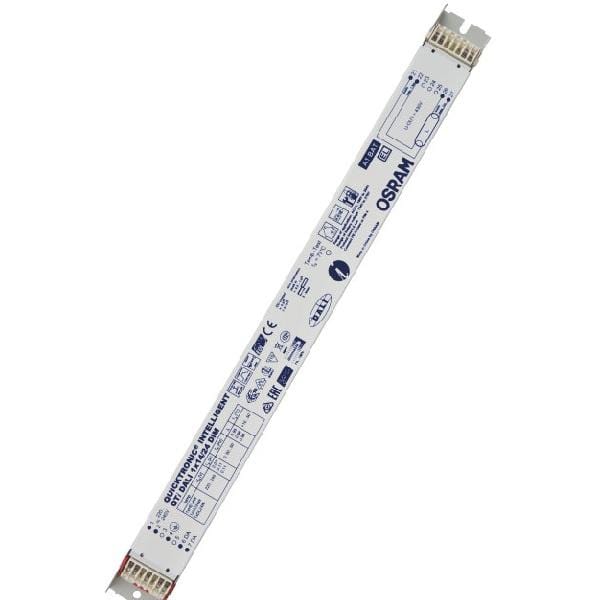

Osram Quicktronic QTi 1X14-24W Intelligent Dimmable T5 Fluorescent Ballast

Osram Quicktronic QTi 1X14-24W Intelligent Dimmable T5 Fluorescent Ballast

4050300870380

$ 70.00 SGD
$ 75.00 SGD $ 70.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Contact Us

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

For the datasheet click here.
Product family benefits
  • System+ Guarantee available
  • Easy integration in luminaire thanks to same dimensions like DALI GI ECG
  • TouchDIM function for easy and inexpensive dimming of several ECGs
  • Same luminous flux with direct and alternating current
  • Dimming of amalgam lamps without flickering or reduced lifespan
  • Automatic restart after lamp replacement
DALI product features
  • Control via the DALI interface
  • Compliance with the DALI Version-1 and IEC 60929
  • Control input protected against overvoltage and polarity reversal (OSRAM ECG)
Touch DIM and Touch DIM Sensor function
  • Manual dimming without controller and with standard switches
  • Including memory function (double click) and soft start
Areas of application
  • Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
  • Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
  • Industry
  • Open-plan offices, corridors and storage rooms
  • Public buildings
  • Sports halls and factories
  • Strip lighting
  • Shop lighting
  • Suitable for luminaires of protection class I

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

154…276 V

Operating frequency

53…120 kHz

Max. ECG no. on circuit breaker 10 A (B)

17


Max. ECG no. on circuit breaker 16 A (B)

28


Inrush current

24 A

Light technical data

Starting time

0.6 s


Dimensions & weight

Length

360.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

350.0 mm

Product weight

278.00 g

Cable cross-section, input side

0.5…1.5 / 0.5…1.0 mm²


Cable cross-section, output side

0.5…1.5 / 0.5…1.0 mm²


Temperatures & operating conditions

Ambient temperature range

+10…+50 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

100000 h


Additional product data

Suitable for lamp power (1 lamp)

14…24 W

Capabilities

Dimming interface

DALI / Touch DIM / Touch DIM Sensor

Dimming range

1…100 %


Dimmable

Yes

Overheating protection

Power reduction and switch off at T > 75 °C at the tc point

Suitable for fixtures with prot. class

I

End of lamp life safety shutdown

EOL T.2

Max. cable length to lamp/LED module

1.0 m / 1.5 m

Certificates & standards

Approval marks – approval

VDE / VDE-EMC / EL / EAC / RCM / CCC

Standards

Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to IEC 62386-101:Ed1/Acc. to IEC 62386-102:Ed1

Protection class

I

EEI – Energy Label

A1 BAT

Type of protection

IP20
