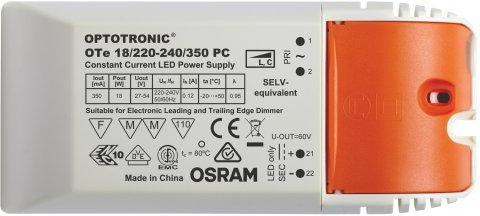

Osram Optronic OTe 18/220-240/350 PC
Osram Optronic OTe 18/220-240/350 PC
SKU SKU:4052899105348
Regular price
$ 25.00 SGD
Regular price
$ 32.00 SGD
Sale price
$ 25.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Share
Electrical data |
|
|---|---|
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Input voltage AC | 198…264 V
|
| Total harmonic distortion | 15 % |
| Power factor λ | 0.95/0.90
|
| ECG efficiency | 86 %
|
| Device power loss | 3.0 W
|
| Inrush current | 5 A
|
| Max. ECG no. on circuit breaker 10 A (B) | 52 |
| Max. ECG no. on circuit breaker 16 A (B) | 84 |
| Max. ECG no. on circuit breaker 25 A (B) | - |
| Surge capability (L/N-Ground) | 1 kV |
| Surge capability (L-N) | 1 kV |
| Nominal output voltage | 27…54 V
|
| U-OUT (working voltage) | 50 V |
| Nominal output current | 350 mA
|
| Output current tolerance | ±10 % |
| Output ripple current (100 Hz) | < 35 % |
| Nominal output power | 19 W
|
| Galvanic isolation | SELV |
| Galvanic isolation primary/secondary | 3 kV |
Dimensions & weight |
|
|---|---|
| Length | 95.0 mm |
| Width | 53.0 mm |
| Height | 30.0 mm |
| Mounting hole spacing, length | - |
| Product weight | 93.00 g |
| Cable cross-section, input side | 0.75…1.5 mm²
|
| Cable cross-section, output side | 0.5…1.5 mm²
|
| Wire preparation length, input side | 8.0…9.0 mm |
| Wire preparation length, output side | 8.0…9.0 mm |
Colors & materials |
|
|---|---|
| Casing material | Plastic |
Temperatures & operating conditions |
|
|---|---|
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 75 °C
|
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 %
|
Lifespan |
|
|---|---|
| ECG lifetime | 50000 h
|
Additional product data |
|
|---|---|
| Encapsulated | No |
Capabilities |
|
|---|---|
| Dimmable | Yes |
| Dimming interface | Phase Cut
|
| Dimming range | 10…100 % |
| Dimming method | Amplitude Modulation |
| Dimming method | Pulse Width Modulation |
| Overheating protection | Automatic reversible |
| Overload protection | Automatic reversible |
| Short-circuit protection | Automatic reversible |
| No-load proof | Yes |
| Max. cable length to lamp/LED module | 2.0 m |
| Suitable for fixtures with prot. class | I |
| Suitable for fixtures with prot. class | II |
| Type of connection, output side | Push terminal |
Certificates & standards |
|
|---|---|
| Approval marks – approval | CE |
| Approval marks – approval | ENEC 10 |
| Approval marks – approval | VDE |
| Approval marks – approval | CB |
| Standards | Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 |
| Protection class | II |
| Type of protection | IP20 |
Logistical data |
|
|---|---|
| Temperature range at storage | -25…75 °C |
