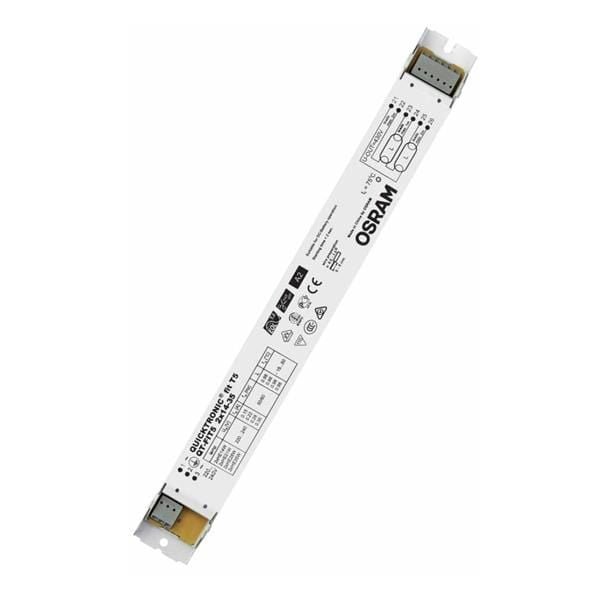

Osram QT-FIT5/QTP5 Electronic Fluorescent Lighting Ballast x4Pcs
Osram QT-FIT5/QTP5 Electronic Fluorescent Lighting Ballast x4Pcs
SKU SKU:4008321971234
23 in stock
Couldn't load pickup availability
Share
Technical data sheets
Data Sheet
*Check stock before ordering. Lead time 4 working days*
Product Details
QUICKTRONIC FIT Electronic Control Gear
The Osram Quicktronic FIT 5 is an electronic control gear for fluorescent lamps. This ECG guarantees a long lamp life and is not affected by frequent on/off switching. The Quicktronic FIT 5 is the perfect electronic ballast for use with motion sensor lighting. This Osram ECG has very high energy efficiency, thanks to its cut-off technology.
Ideal applications for the Quicktronic FIT 5 ECG are in emergency lighting systems, offices, corridors, storage rooms, public buildings, strip lighting and modernization of existing systems.
Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
Very high energy efficiency due to cut-off technology
Supply voltage: 220-240V
Line voltage: 198-264V
Line frequency: 50 Hz | 60 Hz
Lamp start with optimum filament preheating
Energy Efficiency Index EEI: A2
Automatic shutdown of defective lamps and at end of life
Specifications
1x14-35W, 280mm
QT-FIT5 1X14-35 / 220-240v (873-5079)
| Attribute | Value |
| Wattage | 35 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | T5 |
| Supported Lamp Type | Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| Length | 280 mm |
| Width | 30 mm |
| Height | 21mm |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +50°C |
| Series | QUICKTRONIC |
| EU Energy Efficiency Rating | A2 |
14W, 280mm
| Attribute | Value |
| Wattage | 14 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | T5 |
| Supported Lamp Type | Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| Length | 280 mm |
| Width | 40 mm |
| Height | 21mm |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +50°C |
| Series | QUICKTRONIC |
| EU Energy Efficiency Rating | A2 |
92W, 360mm
| Attribute | Value |
| Wattage | 92 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | T5 |
| Supported Lamp Type | Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| Length | 360 mm |
| Width | 30 mm |
| Height | 21mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| Series | QUICKTRONIC |
| EU Energy Efficiency Rating | A2 |
35W, 360mm
| Attribute | Value |
| Wattage | 35 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | T5 |
| Supported Lamp Type | Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| Length | 360 mm |
| Width | 30 mm |
| Height | 21mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| EU Energy Efficiency Rating | A2 |
| Series | QUICKTRONIC |
2x14-35W, 280mm
| Attribute | Value |
| Wattage | 35 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | T5 |
| Supported Lamp Type | Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| Length | 280 mm |
| Width | 30 mm |
| Height | 21mm |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +50°C |
| EU Energy Efficiency Rating | A2 |
| Series | QUICKTRONIC |
