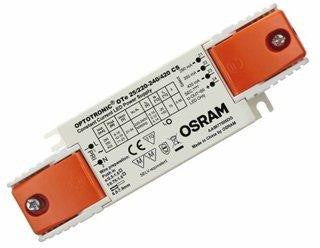

Osram Optronic OTe 25/220-240/420 CS VS20
Osram Optronic OTe 25/220-240/420 CS VS20
SKU SKU:4052899917538
Regular price
$ 30.00 SGD
Regular price
$ 33.00 SGD
Sale price
$ 30.00 SGD
Unit price
/
per
1124 in stock
Share
Electrical data |
|
---|---|
Nominal voltage | 220…240 V |
Mains frequency | 50…60 Hz |
Input voltage AC | 198…264 V
|
Total harmonic distortion | < 20 % |
Power factor λ | 0.95
|
ECG efficiency | 85 %
|
Device power loss | 4.0 W
|
Inrush current | 16 A
|
Max. ECG no. on circuit breaker 10 A (B) | 30 |
Max. ECG no. on circuit breaker 16 A (B) | 50 |
Max. ECG no. on circuit breaker 25 A (B) | - |
Surge capability (L/N-Ground) | 1 kV |
Surge capability (L-N) | 1 kV |
Nominal output voltage | 27…54 V
|
U-OUT (working voltage) | 60 V |
Nominal output current | 290 mA
|
Nominal output current | 350 mA
|
Nominal output current | 420 mA
|
Output current tolerance | ±5 % |
Output ripple current (100 Hz) | 20 % |
Nominal output power | 23 W
|
Galvanic isolation | SELV |
Dimensions & weight |
|
---|---|
Length | 97.0 mm |
Width | 43.0 mm |
Height | 29.5 mm |
Mounting hole spacing, length | 88.0 mm |
Mounting hole spacing, width | 34.0 mm |
Product weight | 90.00 g |
Cable cross-section, input side | 0.5…1.5 mm² |
Cable cross-section, output side | 0.5…1.5 mm² |
Wire preparation length, input side | 6.5…7.5 mm |
Wire preparation length, output side | 6.5…7.5 mm |
Colors & materials |
|
---|---|
Casing material | Plastic |
Temperatures & operating conditions |
|
---|---|
Ambient temperature range | -20…+50 °C |
Maximum temperature at tc test point | 75 °C
|
Max.housing temperature in case of fault | 110 °C |
Permitted rel. humidity during operation | 5…85 %
|
Lifespan |
|
---|---|
ECG lifetime | 50000 h
|
ECG lifetime | 35000 h
|
Additional product data |
|
---|---|
Encapsulated | No |
Capabilities |
|
---|---|
Dimmable | No |
Overheating protection | Automatic reversible |
Overload protection | Automatic reversible |
Short-circuit protection | Automatic reversible |
No-load proof | Yes |
Max. cable length to lamp/LED module | 2.0 m |
Suitable for fixtures with prot. class | I |
Suitable for fixtures with prot. class | II |
Type of connection, output side | Push terminal |
Certificates & standards |
|
---|---|
Approval marks – approval | ENEC 10 |
Approval marks – approval | VDE |
Approval marks – approval | CE |
Standards | Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61547/Acc. to IEC 61000-3-3 |
Type of protection | IP20 |
Logistical data |
|
---|---|
Temperature range at storage | -25…75 °C |
