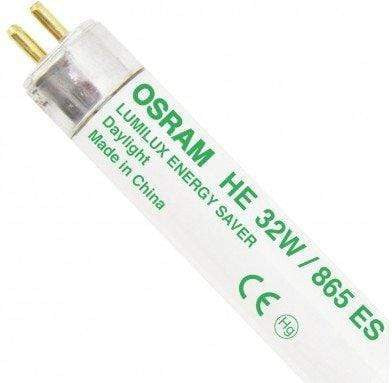

HE 32W/865 ES 20X1
Electrical data
|
| Nominal wattage |
13 W / 19 W / 25 W / 32 W |
| Rated lamp efficacy (HF data 25 °C) |
92 lm/W |
| Rated wattage |
12 W / 19 W / 25 W / 32 W |
Photometrical data
|
| Color rendering index Ra |
≥80 |
| Rated luminous flux |
1150 lm |
| Luminous flux at |
1150 lm |
| Luminous flux at |
1350 lm |
| Light color |
830 |
| Rated color temperature |
3000 K / 4000 K / 6500 K |
| Nominal luminous flux |
1150 lm |
| Light color (designation) |
LUMILUX Warm White |
| Rated LLMF at 2,000 h |
0,96 |
| Rated LLMF at 4,000 h |
0,95 |
| Rated LLMF at 6,000 h |
0,94 |
| Rated LLMF at 8,000 h |
0,93 |
| Rated LLMF at 12,000 h |
0,91 |
| Rated LLMF at 16,000 h |
0,90 |
| Rated LLMF at 20,000 h |
0,89 |
Dimensions & weight
|
| Tube diameter |
16 mm |
| Length |
549,0 mm |
| Length with base excl. base pins/connection |
549,00 mm |
| Diameter |
16,0 mm |
| Maximum diameter |
16,0 mm |
Temperatures & operating conditions
|
| Rated ambient temp.w.max.luminous flux |
35,0 °C |
Lifespan
|
| Service life |
19000 h
|
| Lifespan |
24000 h
|
| Rated lamp survival factor at 2,000 h |
0,99 |
| Rated lamp survival factor at 4,000 h |
0,99 |
| Rated lamp survival factor at 6,000 h |
0,99 |
| Rated lamp survival factor at 8,000 h |
0,99 |
| Rated lamp survival factor at 12,000 h |
0,99 |
| Rated lamp survival factor at 16,000 h |
0,99 |
| Rated lamp survival factor at 20,000 h |
0,94 |
| Operation mode LLMF/LSF |
HF |
| Rated lamp life time |
25000 h |
Additional product data
|
| Base (standard designation) |
G5 |
| Mercury content |
1,2 mg |
| Product remark |
Solo per il funzionamento ECGLampada progettata per temperature di illuminazione interna di 30…40 °C; flusso luminoso ottimale raggiunto a 35 °C |
Capabilities
|
| Dimmable |
Sì |
| Suitable for indoor |
Sì |
Certificates & standards
|
| Energy efficiency class |
A+ |
| Energy consumption |
14 kWh/1000h |
|
