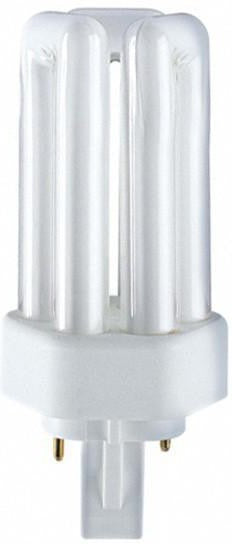

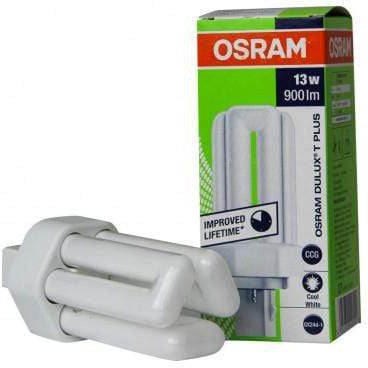

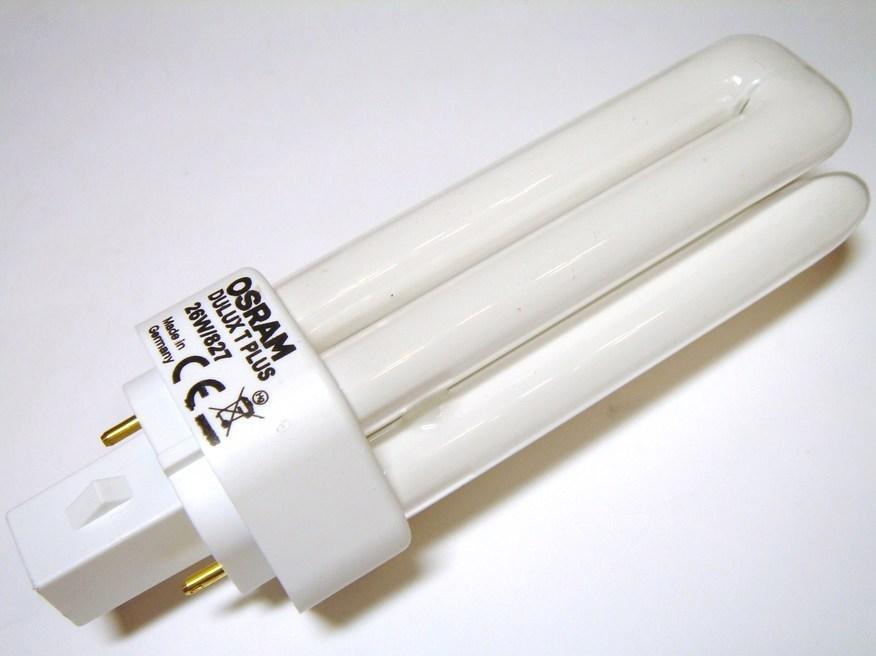

DULUX T 26W/840 PLUS GX24D 10X1 OSRAM
Electrical data
|
| Nominal wattage |
13 W / 18 W / 26 W |
| Rated wattage |
13 W / 18 W / 26 W |
Photometrical data
|
| Nominal luminous flux |
900 lm |
| Light color (designation) |
LUMILUX Warm White |
| Luminous flux at |
900 lm |
| Rated luminous flux |
900 lm |
| Rated color temperature |
3000 K |
| Color rendering index Ra |
80…89 |
| Rated LLMF at 2,000 h |
0,85 |
| Rated LLMF at 4,000 h |
0,78 |
| Rated LLMF at 6,000 h |
0,76 |
| Rated LLMF at 8,000 h |
0,75 |
Dimensions & weight
|
| Diameter |
11,0 mm |
| Overall length |
111,0 mm |
| Length |
113,0 mm |
| Length acc. to IEC standard |
90 mm |
| Length with base excl. base pins/connection |
90,00 mm |
| Outer bulb |
T12 |
| Maximum diameter |
12,0 mm |
Lifespan
|
| Nominal lamp life time |
10000 h |
| Rated lamp life time |
10000 h |
| Service life |
8000 h |
| Rated lamp survival factor at 2,000 h |
0,99 |
| Rated lamp survival factor at 4,000 h |
0,99 |
| Rated lamp survival factor at 6,000 h |
0,95 |
| Rated lamp survival factor at 8,000 h |
0,81 |
| Operation mode LLMF/LSF |
50 Hz |
| Lifespan |
10000 h
|
Additional product data
|
| Base (standard designation) |
GX24d-1 |
| Mercury content |
1,7 mg |
Certificates & standards
|
| Energy efficiency class |
A |
| Energy consumption |
17 kWh/1000h |
|
