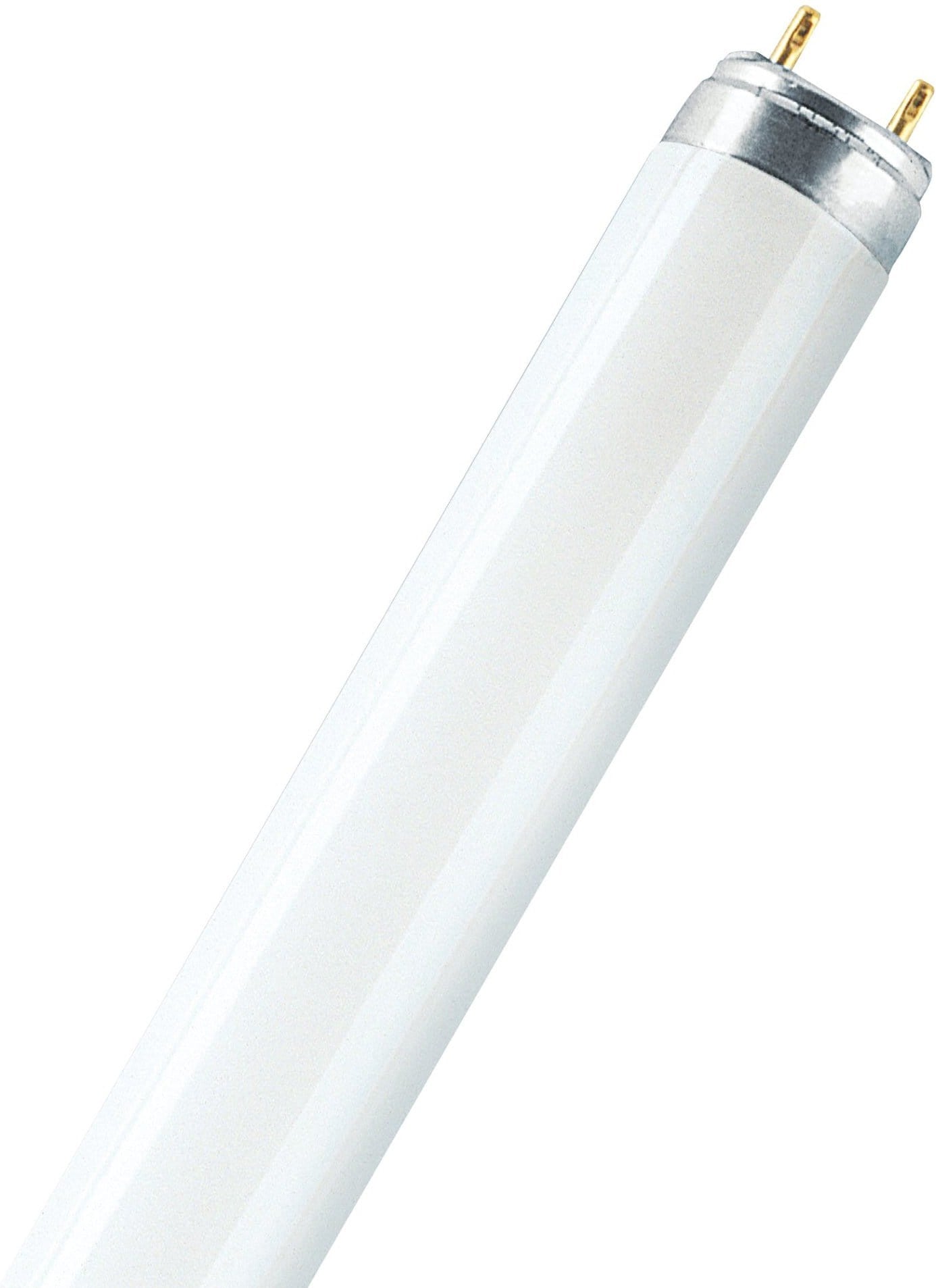

L 58W/965 25X1 LF
Electrical data
Nominal wattage |
18 W / 58 W |
Rated lamp efficacy (HF data 25 °C) |
Under clarification by authority and standardization body |
Rated wattage |
18.00 W |
Photometrical data
Rated lamp efficacy (standard condition) |
64 lm/W |
Color rendering index Ra |
≥90 |
Rated luminous flux |
1150 lm |
Luminous flux at 25 °C |
1150 lm |
Light color |
965 |
Rated color temperature |
6500 K |
Nominal luminous flux |
1150 lm |
Light color (designation) |
LUMILUX DE LUXE Cool Daylight |
Rated LLMF at 2,000 h |
0.93 |
Rated LLMF at 4,000 h |
0.90 |
Rated LLMF at 6,000 h |
0.88 |
Rated LLMF at 8,000 h |
0.87 |
Rated LLMF at 12,000 h |
0.85 |
Rated LLMF at 16,000 h |
0.83 |
Rated LLMF at 20,000 h |
0.82 |
Dimensions & weight
Tube diameter |
26 mm |
Length |
590.0 mm |
Length with base excl. base pins/connection |
590.00 mm |
Diameter |
26.0 mm |
Maximum diameter |
26.0 mm |
Temperatures & operating conditions
Rated ambient temp.w.max.luminous flux |
25.0 °C |
Lifespan
Service life |
16000 h
|
Lifespan |
20000 h
|
Rated lamp survival factor at 2,000 h |
0.99 |
Rated lamp survival factor at 4,000 h |
0.99 |
Rated lamp survival factor at 6,000 h |
0.99 |
Rated lamp survival factor at 8,000 h |
0.99 |
Rated lamp survival factor at 12,000 h |
0.99 |
Rated lamp survival factor at 16,000 h |
0.90 |
Rated lamp survival factor at 20,000 h |
0.50 |
Operation mode LLMF/LSF |
HF |
Rated lamp life time |
20000 h |
Nominal lamp life time |
20000 h |
Additional product data
Base (standard designation) |
G13 |
Mercury content |
4.5 mg |
Show WEEE picto |
Yes |
Capabilities
Certificates & standards
Energy efficiency class |
B |
Energy consumption |
23 kWh/1000h |
|
