K5

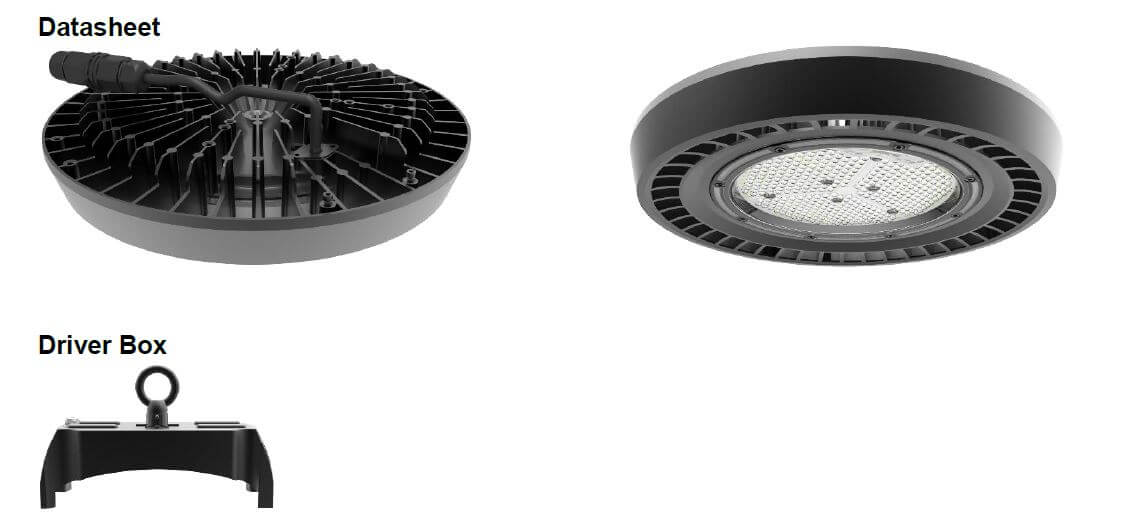

Osram Gino LED HO-E Module High Bay

Osram Gino LED HO-E Module High Bay

SKU SKU:4062172051750

Regular price $ 265.00 SGD
Regular price $ 284.00 SGD Sale price $ 265.00 SGD
Sale Sold out
Shipping calculated at checkout.
Power
Color Temperature

Low stock: 1 left

For datasheet click here.

For 120W 8-10 weeks lead time.

The GinoLED is a high power LED module with an integrated heat sink for optimal thermal management and tailored optical design. The GinoLED lightweight and easy assembly design make installation become much easier. Up to 146Lm/W high efficacy designed to reach more energy saving. GinoLED is an IP65 unit equipped with IP connector for easy installation. GinoLED E version is designed for good enough specifications to fulfill customer basic requirements.

BENEFITS
 Tailored optical and thermal design
 and 90°×90° lens design, adaptation to different mounting heights.
- The high performance of the GinoLED module is attributable to the omnidirectional nature of tree-like fins. Thanks to that, airstreams are able to enter and exit from all directions.
 IP65/IK08 protection
- Self-contained housing with heat sink, no extra protection is needed
 High energy efficiency
- Up to 146Lm/W high efficacy*.
 Easy for assembly
- Thanks for GinoLED integrated design, only few step to finish assembly.
 Long life time
- 50,000hrs
* Mentioned efficacy without driver power consumption.
APPLICATIONS
 Airport, Station, Factory
 Indoor Court, Exhibition Hall, Warehouse.

Safety information
 The LED module itself and all its components may not be mechanical stressed.
 Assembly must not damage or destroy conducting paths on the circuit board.
 To avoid mechanical damage to the connecting cables, the module should be attached securely to the fixture. Heavy vibration should be avoided.
 Installation of LED modules with (power supplies) needs to be made with regard to all applicable electrical and safety standards. Only qualified personnel should be allowed to perform installation.
 Please ensure that the power supply is of adequate power to operate the total load.
 Please ensure that the power supply with correct output parameters (driving mode, voltage, current) for LED module.
 Pay attention to standard ESD precautions when installing the module.
 If surge protection structure not within power supplier, a lightening protector should be needed additionally for outdoor application.

 Higher tc application is not recommended, under the condition of higher than tc max, the product life is shortened.
 tc / tp location as below:

Technical Data
Electrical data
Nominal current
0.7 A

Type of current
DC

Photometrical data
Luminous efficacy
143 lm/W

Color rendering index Ra
>80

Color temperature
4000 K

Dimensions & weight
Product weight
2100.00 g

Length
296.0 mm

Temperatures & operating conditions
Temperature range in operation at Tc point
-30…45 °C

Temperature range at storage
-40…80 °C

Lifespan
Lifespan
50000 h

Capabilities
Dimmable
Yes

Certificates & standards
Type of protection
IP65

Standards
Acc. to IEC 62778/Acc. to IEC 60598-1/Acc. to EN 62031/Acc. to EN 55015/Acc. to EN 61547/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3

Product GL-HO-E 80-840 L90X90
CCT min 3710 K
CCT max 4260K
Center(CIE X / CIE Y) 0.38/0.38
Ra >80
Current mA 700
Lumen Flux LM(min/max) 9900/12100
Driver type NFC
Model Name OT 100/220-240/1A4 1DIMA P7
