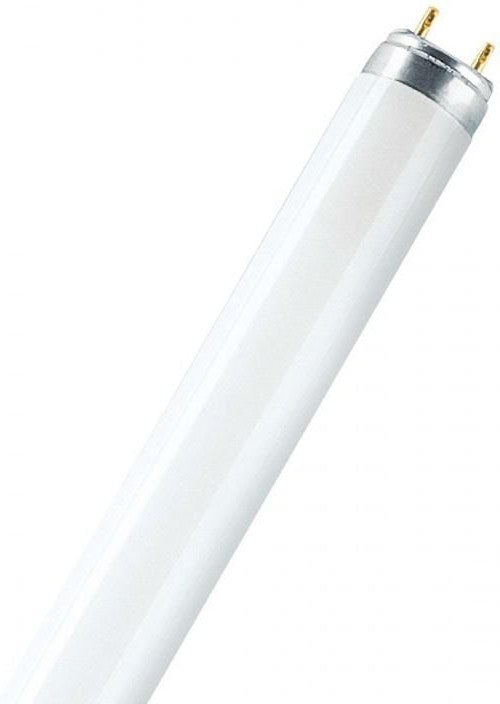

L 36W/865 XXT 25X1 LF OSRAM
Electrical data
| Nominal wattage |
18 W / 36 W |
| Rated lamp efficacy (HF data 25 °C) |
Under clarification by authority and standardization body |
| Rated wattage |
18.00 W |
| Lamp current |
0.37 A |
Photometrical data
| Rated lamp efficacy (standard condition) |
75 lm/W |
| Color rendering index Ra |
≥80 |
| Rated luminous flux |
1350 lm |
| Luminous flux at 25 °C |
1350 lm |
| Light color |
830 |
| Rated color temperature |
3000 K / 4000 K / 6500 K |
| Nominal luminous flux |
1350 lm |
| Light color (designation) |
LUMILUX Warm White |
| Rated LLMF at 2,000 h |
0.96 |
| Rated LLMF at 4,000 h |
0.94 |
| Rated LLMF at 6,000 h |
0.94 |
| Rated LLMF at 8,000 h |
0.93 |
| Rated LLMF at 12,000 h |
0.92 |
| Rated LLMF at 16,000 h |
0.91 |
| Rated LLMF at 20,000 h |
0.91 |
Dimensions & weight
| Tube diameter |
26 mm |
| Length |
590.0 mm |
| Length with base excl. base pins/connection |
590.00 mm |
| Diameter |
26.0 mm |
| Maximum diameter |
26.0 mm |
Temperatures & operating conditions
| Rated ambient temp.w.max.luminous flux |
25.0 °C |
Lifespan
| Service life |
75000 h
|
| Lifespan |
90000 h
|
| Rated lamp survival factor at 2,000 h |
0.99 |
| Rated lamp survival factor at 4,000 h |
0.99 |
| Rated lamp survival factor at 6,000 h |
0.99 |
| Rated lamp survival factor at 8,000 h |
0.99 |
| Rated lamp survival factor at 12,000 h |
0.99 |
| Rated lamp survival factor at 16,000 h |
0.99 |
| Rated lamp survival factor at 20,000 h |
0.99 |
| Operation mode LLMF/LSF |
HF |
| Rated lamp life time |
90000 h |
| Nominal lamp life time |
90000 h |
Additional product data
| Base (standard designation) |
G13 |
| Mercury content |
3.3 mg |
| Show WEEE picto |
Yes |
Capabilities
| Dimmable |
Yes |
| Suitable for indoor |
Yes |
Certificates & standards
| Energy efficiency class |
A |
| Energy consumption |
22 kWh/1000h |
|
