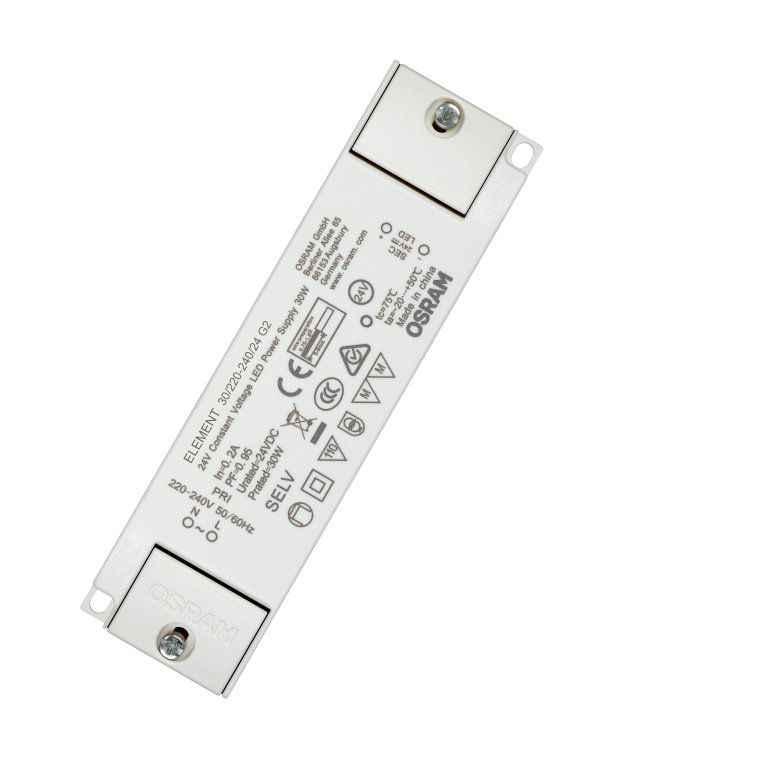

OSRAM ELEMENT /220-240/24 G2 Constant Voltage Driver
OSRAM ELEMENT /220-240/24 G2 Constant Voltage Driver
SKU SKU:4052899605503
Regular price
$ 27.00 SGD
Regular price
$ 29.00 SGD
Sale price
$ 27.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Technical Details
Technical Data
Electrical data
Nominal input voltage
220…240 V
Mains frequency
50…60 Hz
Input voltage AC
198…264 V
Power factor λ
0.95
ECG efficiency
86 %
Device power loss
4.9 W
Inrush current
< 16 A
Max. ECG no. on circuit breaker 10 A (B)
13
Max. ECG no. on circuit breaker 10 A (C)
23
Max. ECG no. on circuit breaker 16 A (B)
23
Max. ECG no. on circuit breaker 16 A (C)
38
Max. ECG no. on circuit breaker 25 A (B)
35
Surge capability (L-N)
1 kV
Nominal output voltage
24 V
Nominal output power
30 W
Galvanic isolation primary/secondary
3 kV
Output ripple Voltage (100 Hz)
< 3 %
Dimensions & weight
Mounting hole spacing, length
137 mm
Product weight
107.00 g
Cable cross-section, input side
0.75…1.5 mm²
Cable cross-section, output side
0.75…1.5 mm²
Wire preparation length, input side
5.0 mm
Length
145.0 mm
Width
40.0 mm
Height
26.5 mm
Colors & materials
Casing material
Plastic
Temperatures & operating conditions
Ambient temperature range
-20…+50 °C
Maximum temperature at tc test point
75 °C
Max.housing temperature in case of fault
110 °C
Temperature range at storage
-40…+85 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
30000 h
Capabilities
Dimmable
No
Overheating protection
Yes
Overload protection
Yes
Short-circuit protection
Yes
Suitable for fixtures with prot. class
I / II
Number of channels
1
Certificates & standards
Approval marks – approval
CE / RCM / CCC / MM
Standards
Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to IEC 61000-3-2/Acc. to CISPR 15/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Type of protection
IP20
Logistical data
Commodity code
850440829000
