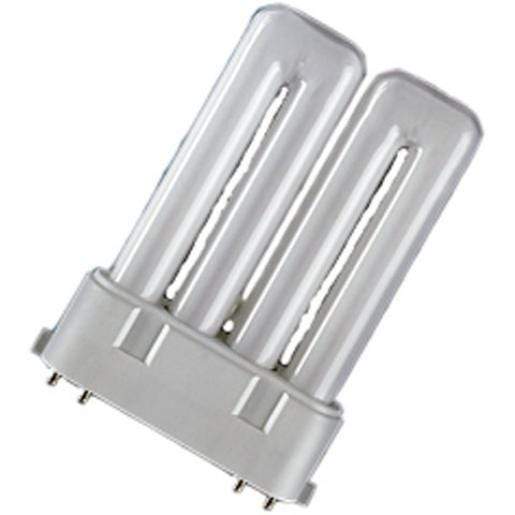

OSRAM DULUX F Lumilux 36W 2G10 Base Bulb
OSRAM DULUX F Lumilux 36W 2G10 Base Bulb
SKU SKU:4050300299051
Regular price
$ 29.00 SGD
Regular price
$ 32.00 SGD
Sale price
$ 29.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
For the datasheet click here.
Technical Data
Electrical data
Nominal wattage
36.00 W
Rated wattage
36.00 W
Photometrical data
Nominal luminous flux
2800 lm
Light color (designation)
LUMILUX Warm White
Luminous flux at
2800 lm
Rated luminous flux
2800 lm
Rated color temperature
3000 K
Rated LLMF at 4,000 h
0.86
Rated LLMF at 6,000 h
0.83
Rated LLMF at 8,000 h
0.81
Rated LLMF at 12,000 h
0.77
Luminance
3 cd/cm²
Luminous flux
2800 lm
Color temperature
3000 K
Color rendering index Ra
80…89
Color rendering index Ra
≥80
Dimensions & weight
Diameter
17.5 mm
Overall length
217.0 mm
Tube diameter
17.5 mm
Length
217.0 mm
Length acc. to IEC standard
217 mm
Outer bulb
T16
Product weight
106.00 g
Maximum diameter
17.0 mm
Temperatures & operating conditions
Rated ambient temp.w.max.luminous flux
25.0 °C
Lifespan
Rated lamp life time
13000 h
Service life
9000 h
Rated lamp survival factor at 2,000 h
0.99
Rated lamp survival factor at 4,000 h
0.99
Rated lamp survival factor at 6,000 h
0.99
Rated lamp survival factor at 8,000 h
0.95
Rated lamp survival factor at 12,000 h
0.64
Operation mode LLMF/LSF
HF
Nominal lamp life time
13000 h
Lifespan
10000 h
Additional product data
Base (standard designation)
2G10
Mercury content
2.5 mg
Appropriate disposal acc. to WEEE
Yes
Capabilities
Suitable for indoor
Yes
Certificates & standards
Energy efficiency class
A
Energy consumption
40 kWh/1000h
Country specific categorizations
ILCOS
FSD-36/830-E-2G10-90/217
Order reference
DULUX F 36W/830
