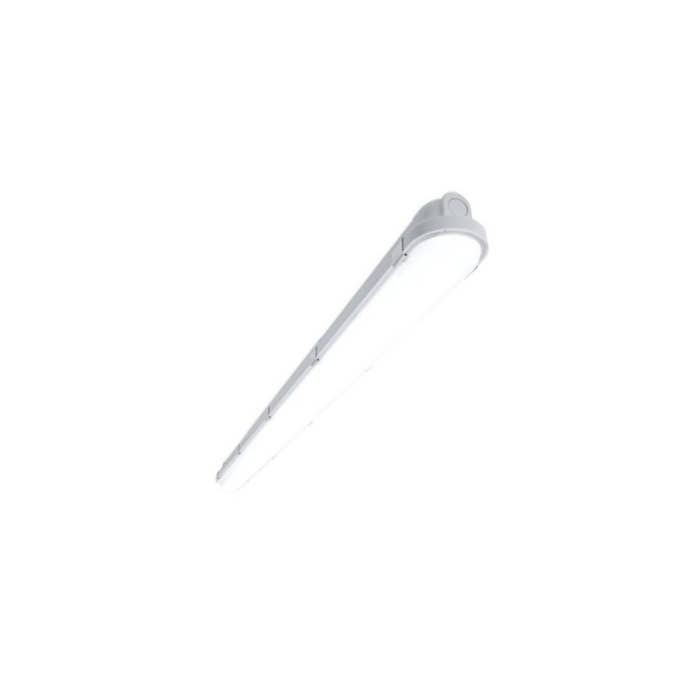

Philips GreenPerform Waterproof G3 WT198C LED27S/840 PSU L1200 (911401825680) x 9pcs
Philips GreenPerform Waterproof G3 WT198C LED27S/840 PSU L1200 (911401825680) x 9pcs
SKU SKU:911401825680
Regular price
$ 790.00 SGD
Regular price
$ 790.00 SGD
Sale price
$ 790.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
WT198C LED27S/840 PSU L1200 (911401825680)
Leadtime: 7 To 9 Weeks
Specififcations:
| GENERAL INFORMATION | |
| Light Source Replaceable | No |
| Number Of Gear Units | 1 unit |
| Driver Included | Yes |
| Light Source Engine Type | LED |
| Service Tag | Yes |
| Warranty Period | 3 years + 2 years upon registration |
| LIGHT TECHNICAL | |
| Luminous Flux | 2,700 lm |
| Correlated Color Temperature (Nom) | 4000 K |
| Luminous Efficacy (rated) (Nom) | 132 lm/W |
| Color Rendering Index (CRI) | >80 |
| Beam Angle Of Light Source | 120 degree(s) |
| Light Source Color | 840 neutral white |
| Optic Type | - |
| Luminaire Light Beam Spread | 114° |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Initial CLO Power Consumption | - W |
| Average CLO Power Consumption | - W |
| Inrush Current | 3.58 A |
| Inrush Time | 40 ms |
| Power Consumption | 20.5 W |
| Power Factor (Fraction) | 0.9 |
| Connection | - |
| Cable | - |
| Number Of Products On MCB Of 16 A Type B | 24 |
| Protection Class IEC | Safety class I |
| CONTROLS AND DIMMING | |
| Dimmable | No |
| Driver/power Unit/transformer | Power supply unit (On/Off) |
| Control Interface | - |
| Constant Light Output | No |
| Maximum Dim Level | Not applicable |
| MECHANICAL AND HOUSING | |
| Housing Material | Polycarbonate |
| Reflector Material | Steel |
| Optic Material | Polycarbonate |
| Optical Cover Material | Polycarbonate |
| Fixation Material | Stainless steel |
| Housing Color | Gray |
| Optical Cover Finish | Opal |
| Overall Length | 1,215 mm |
| Overall Width | 80 mm |
| Overall Height | 85 mm |
| Overall Diameter | 80 mm |
| Dimensions (Height X Width X Depth) | 85 x 80 x 1215 mm |
| Ingress Protection Code | IP65 [Dust penetration-protected, jet-proof] |
| Mech. Impact Protection Code | IK08 [5 J vandal-protected] |
| Optical Cover Type | - |
| Net Weight (Piece) | 1.400 kg |
| APPROVAL AND APPLICATION | |
| Glow-wire Test | Temperature 850 °C, duration 30 s |
| Flammability Mark | - |
| CE Mark | Yes |
| ENEC Mark | - |
| EU RoHS Compliant | No |
| Ambient Temperature Range | -20 to +45 °C |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Luminous Flux Tolerance | +/-10% |
| Initial Chromaticity | (0.38,0.38) |
| Power Consumption Tolerance | +/-10% |
| OVER TIME PERFORMANCE (IEC COMPLIANT) | |
| Driver Failure Rate At 5000 H | 1% |
| Median Useful Life L70B50 | 50,000 hour(s) |
| Median Useful Life L80B50 | 42,000 hour(s) |
| Median Useful Life L90B50 | 20,000 hour(s) |
| PRODUCT DATA | |
| Order Product Name | WT198C LED27S/840 PSU L1200 |
| Full Product Name | WT198C LED27S/840 PSU L1200 |
| Full Product Code | 9.11402E+11 |
| Order Code | 9.11402E+11 |
| Material Nr. (12NC) | 9.11402E+11 |
| Numerator - Quantity Per Pack | 1 |
| Numerator - Packs Per Outer Box | 9 |
