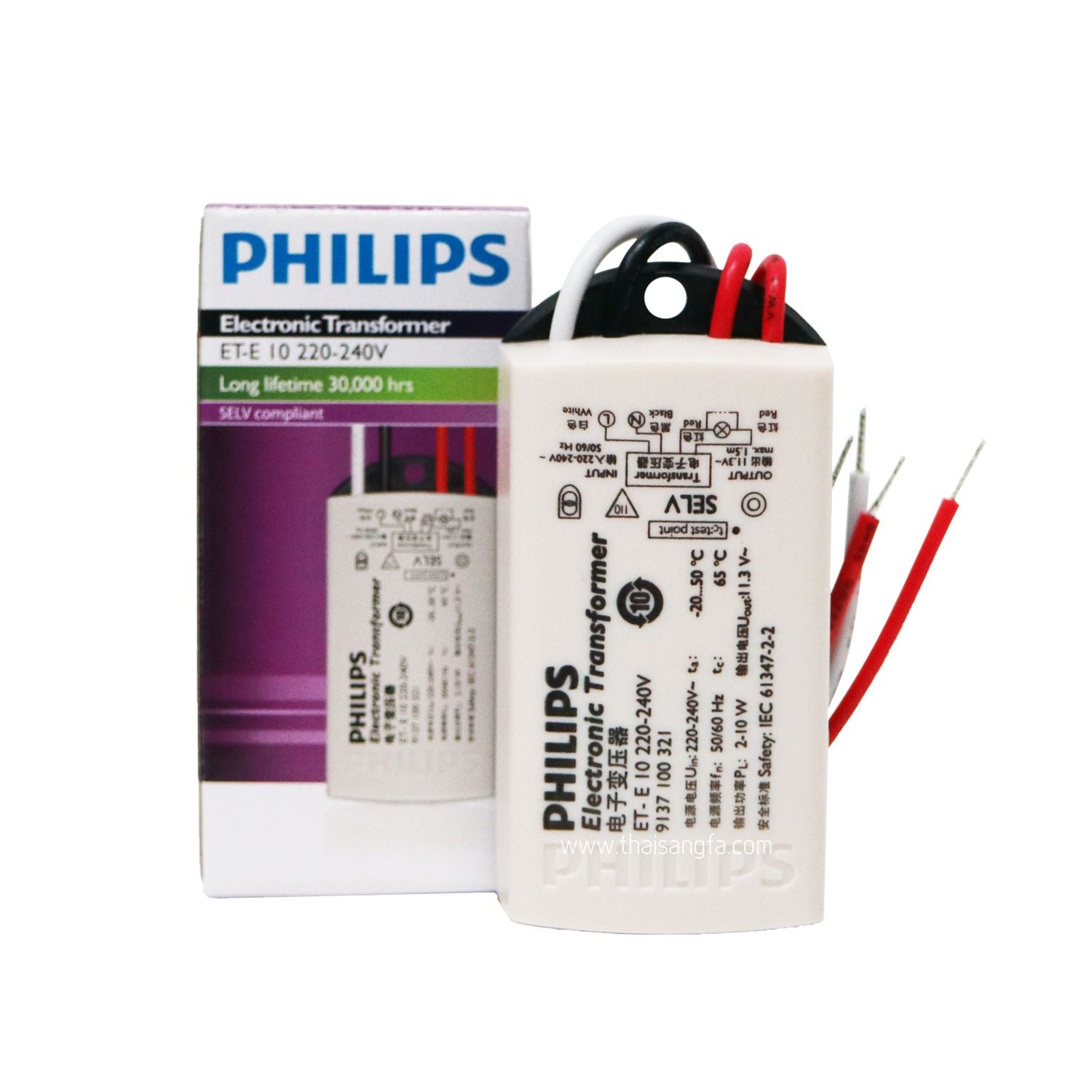

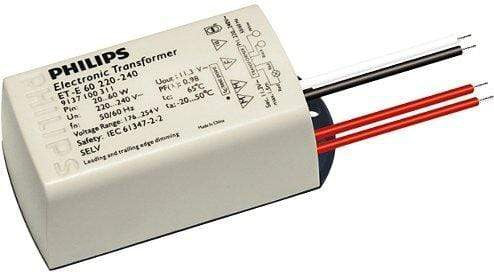

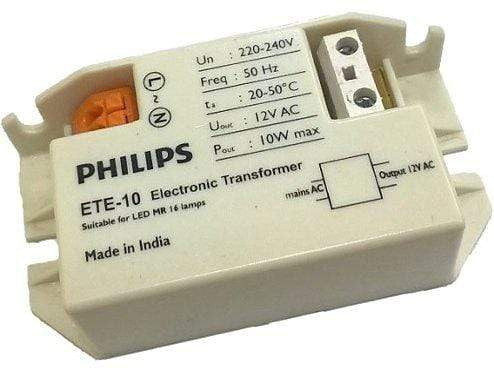

Philips ET-E 12V Constant Voltage Transformer

Specifications

General Information

Type Version	-
Lamp Type	- / LV Halogen

Automatic Restart

Yes

Operating and Electrical

Input Voltage	220 to 240 V
Input Frequency	50 to 60 Hz
Power Factor 100% Load (Nom)	0.94
Mains Voltage Performance (AC)	202...254V / -10%-+10%
Mains Voltage Safety (AC)	198...264V / -8%-+6%

Inrush Current Width	0.10 ms
Power Losses (Nom)	1 W / 4 W
Inrush Current Peak (Max)	15 A
Output Voltage	12 V

Wiring

Cable Capacity Wires Device to Lamp (Max)	120 nF
Cable Length From Device to Lamp	1.5 m

Wire Striplength

8.0-9.0 mm

System characteristics

Rated Ballast-Lamp Power

10 W / 30 W / 15 W / 60 W

Temperature

T-Ambient (Max)	50 °C
T-Ambient (Min)	-20 °C
T-Storage (Max)	50 °C / 80 °C

T-Storage (Min)	-40 °C
T-Case Maximum (Max)	65 °C

Approval and Application

Hum And Noise Level

< 30 dB(A)
