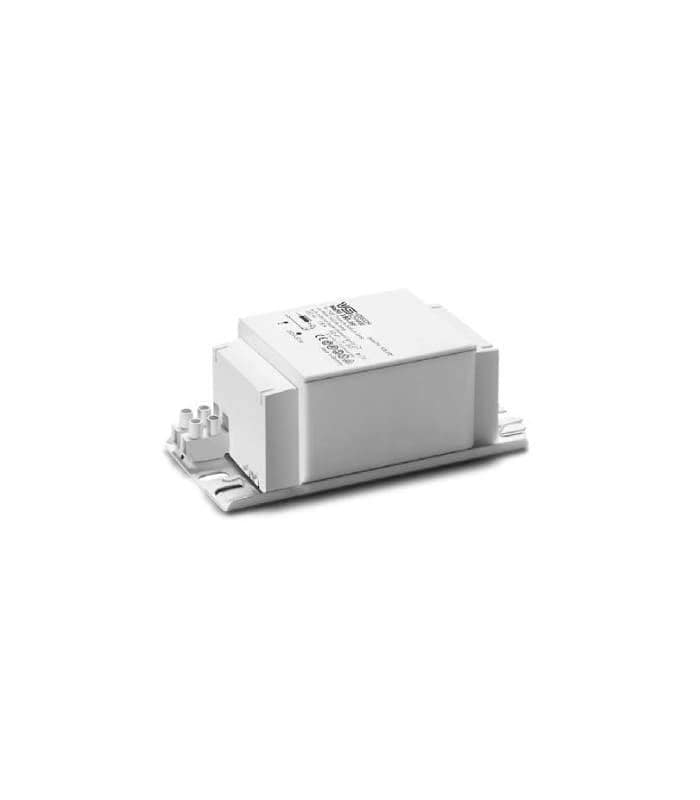

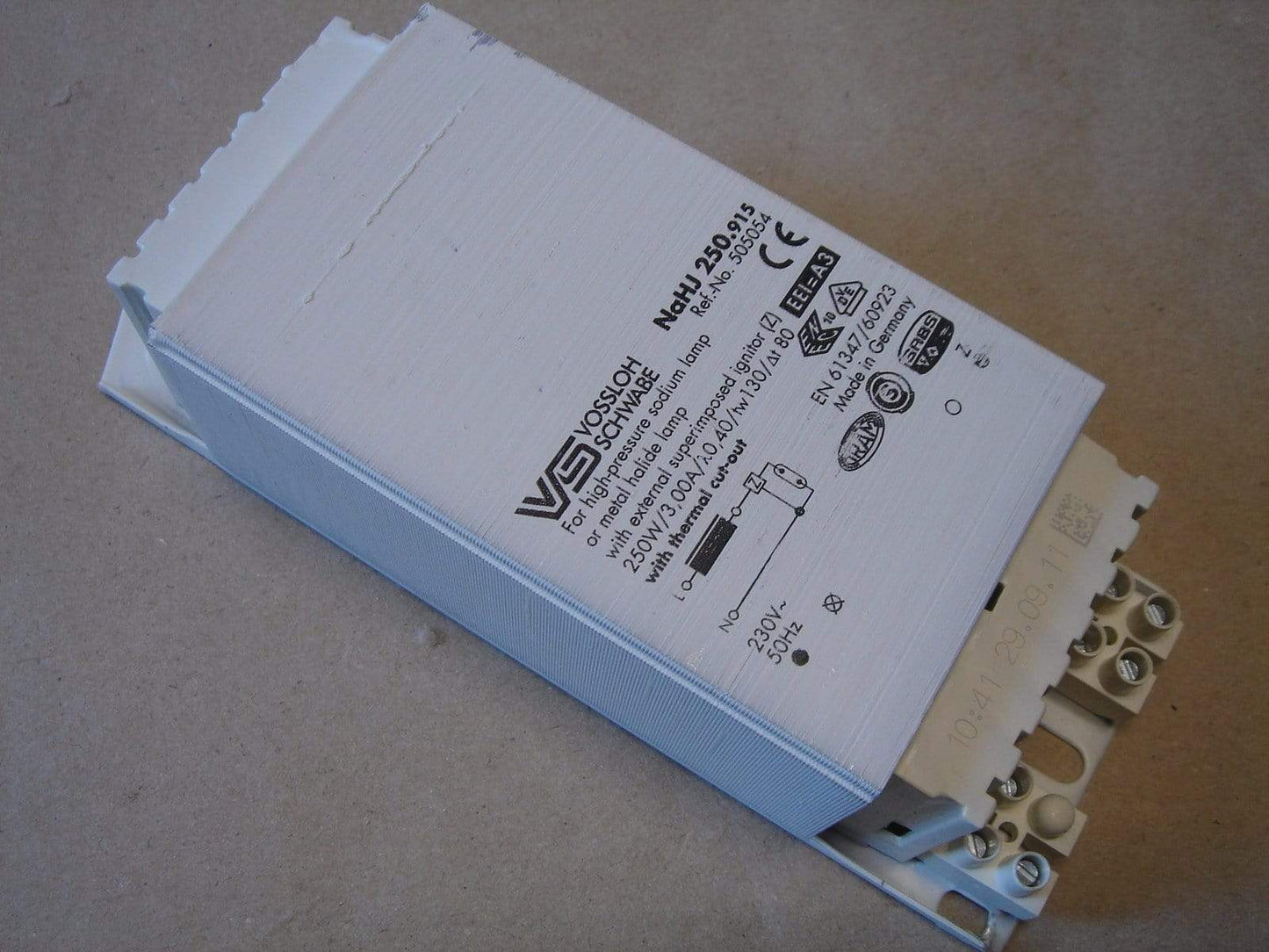

Vossloh schwabe NaHJ Standard Ballast for HS and HI Lamps
Vossloh schwabe NaHJ Standard Ballast for HS and HI Lamps
SKU SKU:161686
Regular price
$ 137.00 SGD
Regular price
$ 145.00 SGD
Sale price
$ 137.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
For high-pressure sodium lamps (HS),
metal halide lamps (HI) and ceramic discharge lamps (C-HI)
Vacuum-impregnated with polyester resin
Screw terminals: 0.5–2.5 mm²
Protection class I
tw 130
Ballasts for pulse ignition system on request
| Technical Details: | |
| Lamp | |
| Output W | 250 W/150W / 70W |
| Type | NaHJ 250.915* / NaHJ150.620 / NaHJ 70.128 |
| Ballast | |
| Type | HS, HI |
| Current A | 3.00 / 1.8 / 0.98 |
| Ref. No | 161686 / 533565 / 533568 |
| Voltage AC 50,60 Hz | 230, 50 |
| a mm | 180 mm / 145 mm / 108 mm |
| b mm | 155 mm / 120 mm / 86 mm |
| c mm | 110 mm / 64 mm / 36 mm |
| Weight | 2.84 kg / 1.8 kg / 1.07 kg |
| Δt K | 80 / 70 / 70 |
| Power factor λ | 0.40 /0.36 |
| Energy Efficiency | EEI=A3 |
| Capacitor | |
| CP µF | 32 / 20 /12 |
| IN A | 1.26 / 0.77 / 0.38 |
