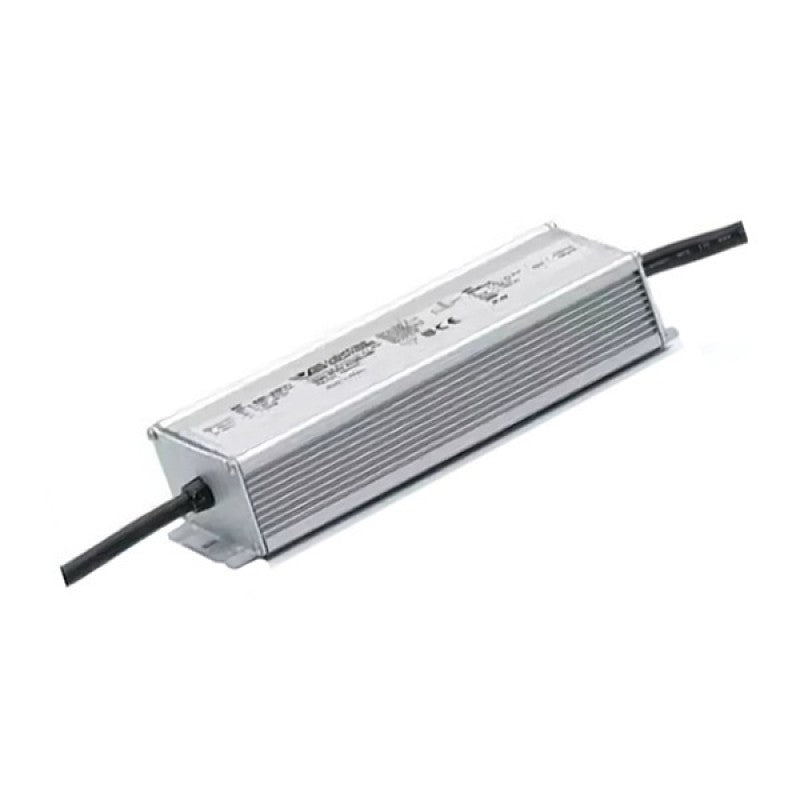

Vossloh Schwabe EDXe1150/24.042 150W 24V Easyline Constant VolatgeDriver

Technical Details

Datasheet

EasyLine 24 V I-L IP Product features

• Compact casing shape IP67

• For use in applications with high capacity range of up to 100, 150 and 200 W Electrical features

• Mains voltage: 220–240 V ±10%

• Mains frequency: 50–60 Hz

• Pre-assembled connection leads 186433, 186434: primary: 2x2.08 mm², secondary: 2x2.08 mm², length: 335 mm 186634: primary: H05RN-F 3x1 mm², secondary: AWG14, length: 335 mm

• Power factor at full load: > 0.95 C Safety features

• Protection against transient main peaks • Electronic short-circuit protection

• Overload protection: reversible

• Protection against "no load" operation

• Degree of protection: IP67

• Protection class I

• SELV
