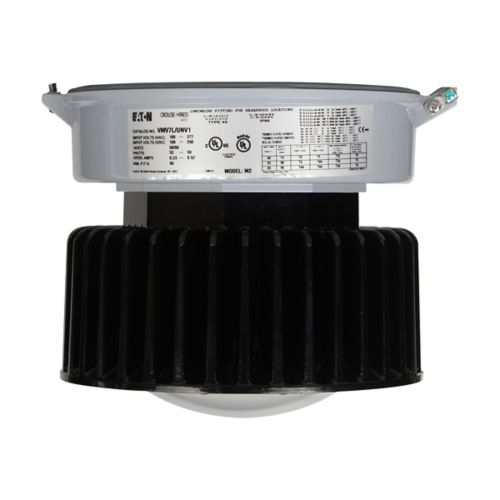

Eaton Crouse-Hinds VMVL-7-UNV1 - LED,59W,5000K,CW,100-277V,50/60HZ,LUMINAIRES,W/O

VMVL-7-UNV1. Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 175W HID equivalent, No guard, Glass lens, 7000 lumens, 127 lm/W, Die cast aluminum, No mounting module, Type V, 100-277 Vac, 127-250 Vdc, 61W

Product Name:	Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number:	VMVL-7-UNV1
UPC:	6.62277E+11
Product Length/Depth:	13 in
Product Height:	13.13 in
Product Width:	12.75 in
Product Weight:	20.8 lb
Certifications and Compliances:
Area Classification:	Hazardous/Classified Locations
Standards Type:	NEC/CEC, IEC, IECEx/ATEX
NEC Hazardous Rating:	Class I, Division 2
	Class I, Zone 2
	Class II, Division 1
	Class III
IECEx/ATEX Hazardous Rating:	Zone 21
NEMA Rating:	4X
Ingress Protection (IP) Ratings:	IP66
Product Specifications:
Lumens:	7000
Lumens per Watt:	127
Color Temperature:	Cool white
Mounting Method:	No mounting module
Optical Distribution:	Type V
Guard Type:	No guard
Voltage Rating:	100-277 Vac, 127-250 Vdc
Frequency Rating:	50/60 Hz
Wattage:	61W
Dimming:	Dimmable driver
Power Factor:	> 0.90
Equivalent Luminaire:	175W HID
Material:	Die cast aluminum
Lens Material:	Heat and impact resistant glass
