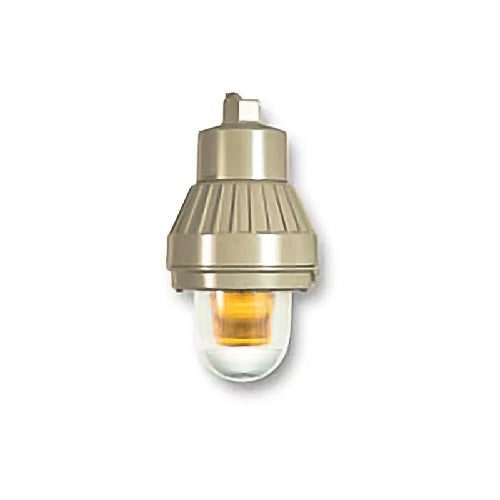

TOMAR 3150BEP-PM-R WITH GUARD RED Color Explosion Proof Warning Lights 12-74 VDC Pendant mount 3/4 HUBS

Datasheet:

Description:

TOMAR 3150BEP-PM-R WITH GUARD RED Color Explosion Proof Warning Lights 12-74 VDC, Pendant mount, 3/4" HUBS

The model 3200BEP family is designed, tested, and certified for use in hazardous locations and hostile environments classified by the NEC as Class I, Div. 1 & 2, Groups C & D, Class II, Div. 1 & 2, Groups E, F, G, and Class III, Div. 1 & 2. They also meet NEMA standards 3, 4, 4X, 7CD, and 9EFG and are marine rated for use in salt water environments. Design features include housing made of die cast high strength copper-free aluminum alloy with a baked powder epoxy finish, stainless steel hardware, o-ring sealed prestressed glass globe with double pitch acme threads for smooth assembly and ease of maintenance, and an optional guard which need not be removed for relamping.


Features:

• UL listed
• CSFM Listed
• meets UL 1203 & 1638
• two year warranty on power supply
• one year warranty on lamp
• 10,000 hour strobe lamp
• available in six lens colors
• marine rated
• NEMA 4X
• Order just the mounting style you need  – Pendant, Flange (Ceiling), or Wall mount
