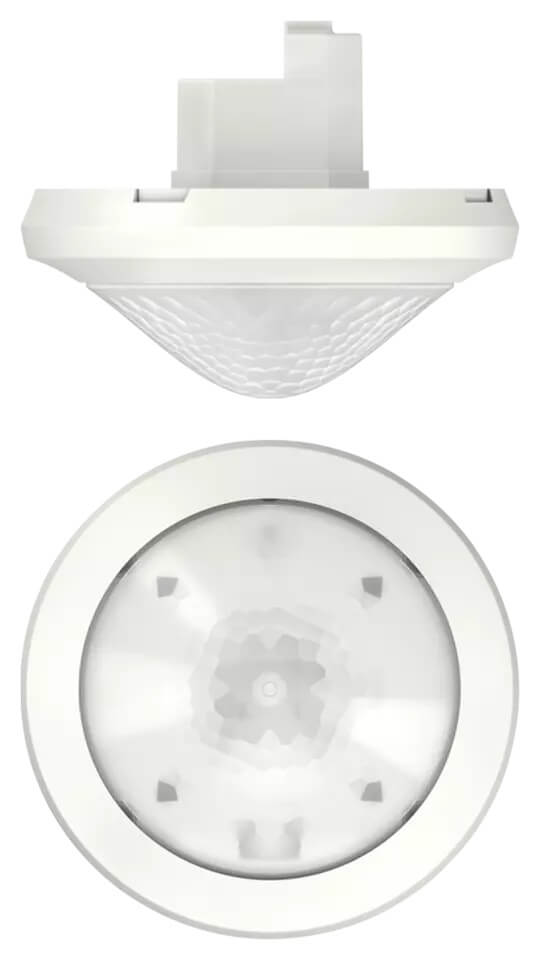

Theben the Ronda P360-100 M UP WH IP54 PIR Presence Detector for Flush Mounted Ceiling

Theben the Ronda P360-100 M UP WH IP54 PIR Presence Detector for Flush Mounted Ceiling

SKU P360-100 M UP WH

PDF o12522v78 theRonda P360100 M UP WH Data sheet.pdf

$ 283.00 SGD
$ 309.00 SGD $ 283.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote

Technical Details:

**Lead Time 1 Week**

Functional Description:

  • Passive infra-red presence detector for flush-mounted ceiling installation
  • Circular detection area 360°, up to Ø 24 m (452 m2) at mounting height 3 m
  • 1 channel light (Relay, 230 V)
  • Automatic presence- and brightness-dependent control for lighting
  • Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
  • Choice of fully or semi-automatic operation
  • Adjustable brightness switching value, teach-in function
  • Reduction of switch-off delay time in the event of short presence (brief-presence)
  • Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch
  • Pulse function for staircase light time switch
  • Switch-on delay and switch-off delay configurable
  • Sensitivity adjustable
  • Detection area can be limited using cover clip
  • Ready for immediate use due to factory preset
  • Test mode for checking function and detection area
  • Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other

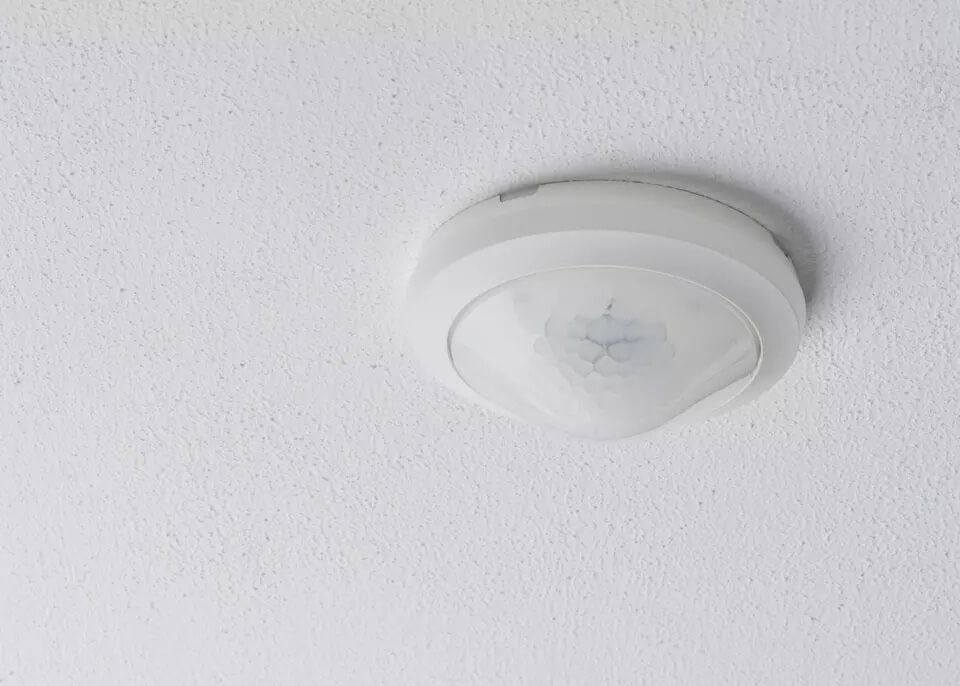

  • Ceiling installation in flush-mounted socket

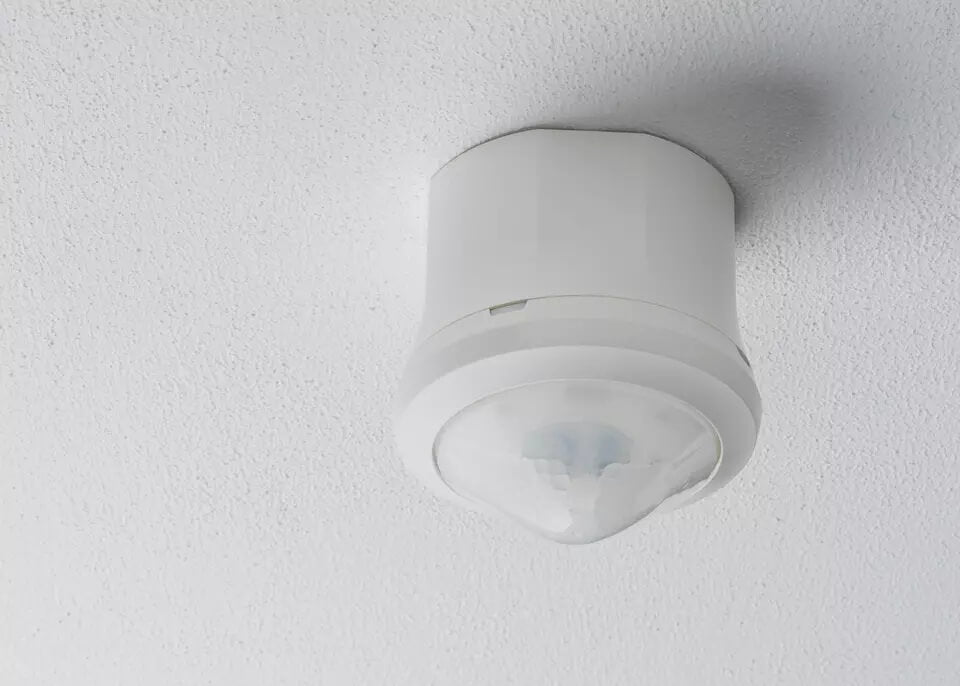

  • Ceiling installation also possible with surface-mounted frame
  • User remote control theSenda S, management remote control SendoPro (optional)

Technical Data:

Operating voltage 110 V AC - 230 V AC
Frequency 50 - 60 Hz
Installation height 2 - 10 m
Maximum height 15 m
Minimum height 1.7 m
Installation type Ceiling installation
Colour White
Power consumption ~0.15 W
Light measurement Mixed light measurement
Setting range brightness 30 - 3000 lx
Light switch-off delay  10 s - 60 min
Lamp types Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Incandescent/halogen lamp load 2300 W
Compact and flourescent lamps 1150 VA (cos φ = 0,5)
Inrush current max. 800 A / 200 µs
LED lamp < 2 W 60 W
LED lamp 2-8 W 600 W
LED lamp > 8 W 600 W
Type of connection Screw terminals
Max. cable cross section max. 2 x 2,5 mm²
Size of concealed housing 55 mm
Switching output Light
Detection range 452 m² (ø 24 m | 360°)
Detection angle 360°
Ambient temperature -15°C ... 50°C
Impact resistance IK04
Type of protection IP 54 (when fitted)
