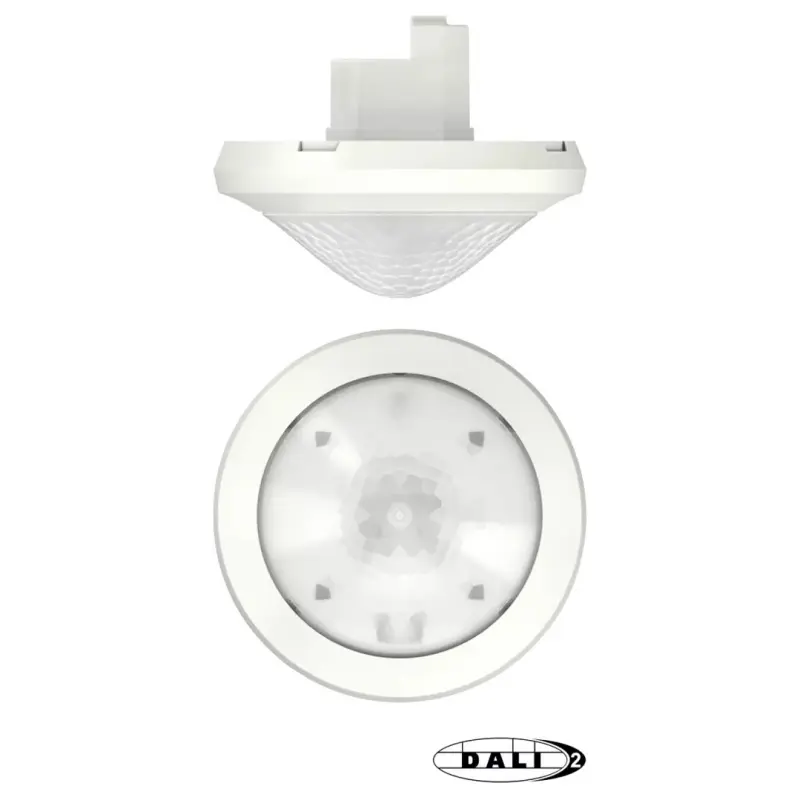

Theben theRonda S360-110 DALI UP WH Presence and Motion Detectors

Lead time 4 weeks

- Passive infra-red presence detector for flush-mounted ceiling
installation, DALI-2 certified
- Circular detection area 360°, Ø 8 m, (50 m2) at mounting height 3 m
- 1 chanel light DALI-2 in broadcast mode
- DALI-2 technology according to IEC 62386 Parts 101 and 103
- 1 push-button input
- Using of conventional push-buttons for maximum design freedom
- Switch or constant light control mode with stand-by function
- Dimmable lighting in switch mode with stand-by function
- Choice of fully or semi-automatic operation
- Adjustable brightness switching value
- Teach-in function via remote control or push-button
- Setting of room correction factor (Automatic adjustment of brightness
measurement)
- Light time delay can be set
- Calibrated 1 channel light measuremen
- Brief-presence
- Self-learning time delay
- Extremely easy setting of energy saving characteristics with the new
„eco plus“ function
- Selectable control speed
- Manual override via remote control or pushbutton
- Behavior after push button operation selectable (school / office)
- Test mode light
- Test-Mode presence
- Remote-controllable
- Scenes
- Sensitivity adjustable
- Detection area can be limited using cover clip
- Extension of detection area via Master/Slave or Master/Master
switching
- Optimized handling by installer during assembly, wiring, commissioning
