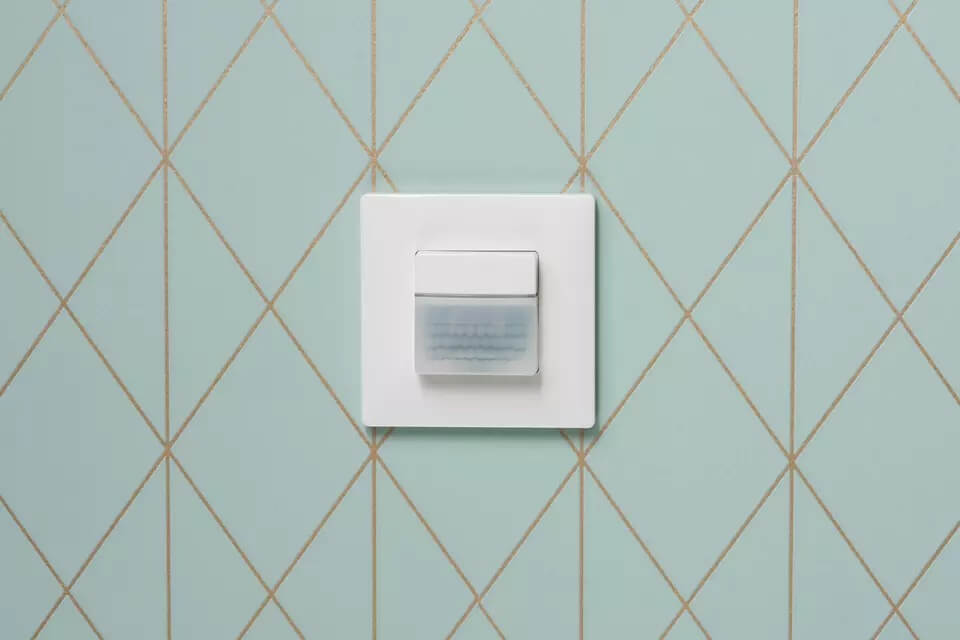

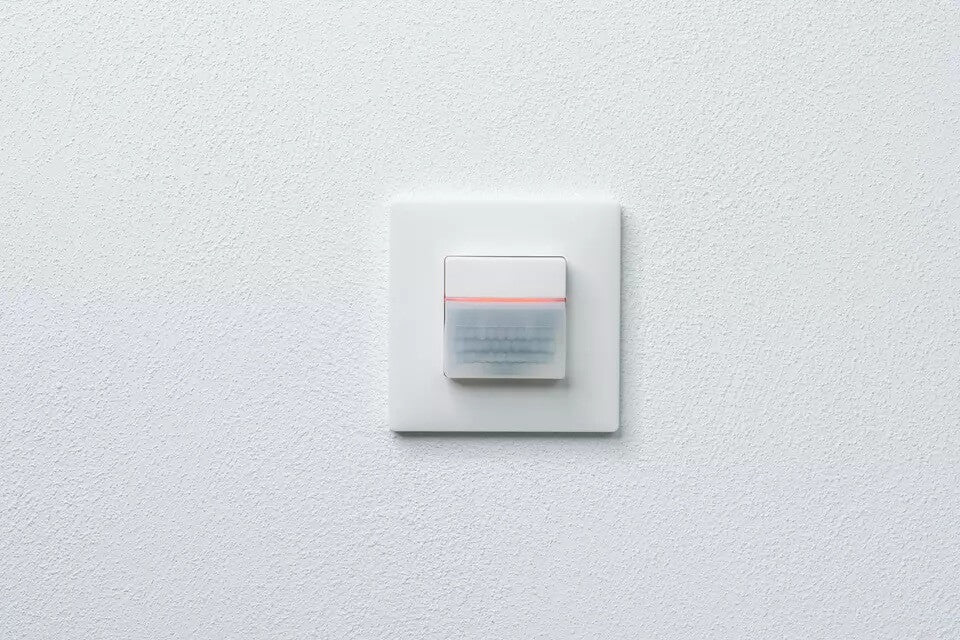

Theben the Mura S180-101 UP WH IP20 PIR Presence Detector for Wall Installation
Theben the Mura S180-101 UP WH IP20 PIR Presence Detector for Wall Installation
SKU SKU:S180-101 UP WH
o37406v78 theMura S180101 UP WH Data sheet.pdf
Regular price
$ 160.00 SGD
Regular price
$ 175.00 SGD
Sale price
$ 160.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Technical Details:
**Lead Time 1 Week**
Check Below Links for Suitable Remotes
The SendaP 9070910 Service Remote Control for Motion Sensors
The SendaB 9070985 Remote Control for Communication of the Senda Plug App
Functional Description:
- Passive infra-red presence detector for wall installation
- Square detection area 170°, 14 x 17 m (238 m2)
- 1 channel light (Relay, 230 V) and 1 channel presence (Relay, floating for HVAC control)
- Fully or semi-automatic operation
- External button can be connected
- Adjustable brightness switching value, teach-in function
- Automatic calibration of brightness measurement
- Switch-on delay configurable
- Short-term presence
- Acoustic function
- Orientation light
- Configurable sensitivity
- External button can be connected
- Staircase light function
- Extension of detection area via master/slave switching
- Ready for immediate use due to factory presetting
- Remote operation with theSenda S, theSenda P, theSenda B
- Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs
- Integrated button (can be blocked)
- Product design by ID AID
Technical Data:
| Operating voltage | 230 V AC |
| Frequency | 50 - 60 Hz |
| Installation height | 0.8 - 1.2 m |
| Installation type | Wall installation |
| Colour | White |
| Power consumption | ~0.4 W |
| Light measurement | Mixed light measurement |
| Setting range brightness | 5 - 3000 lx |
| Light switch-off delay | Impuls, 10 s - 60 min |
| Lamp types | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Incandescent/halogen lamp load | 2300 W |
| Inrush current | max. 600 A / 200 µs |
| LED lamp < 2 W | 40 W |
| LED lamp 2-8 W | 450 W |
| LED lamp > 8 W | 450 W |
| Switch-on delay presence | 0 s - 10 min |
| Presence switch-off delay | 10 s - 120 min |
| Switching capacity presence | 50 W/50 VA |
| Type of connection | Spring terminals |

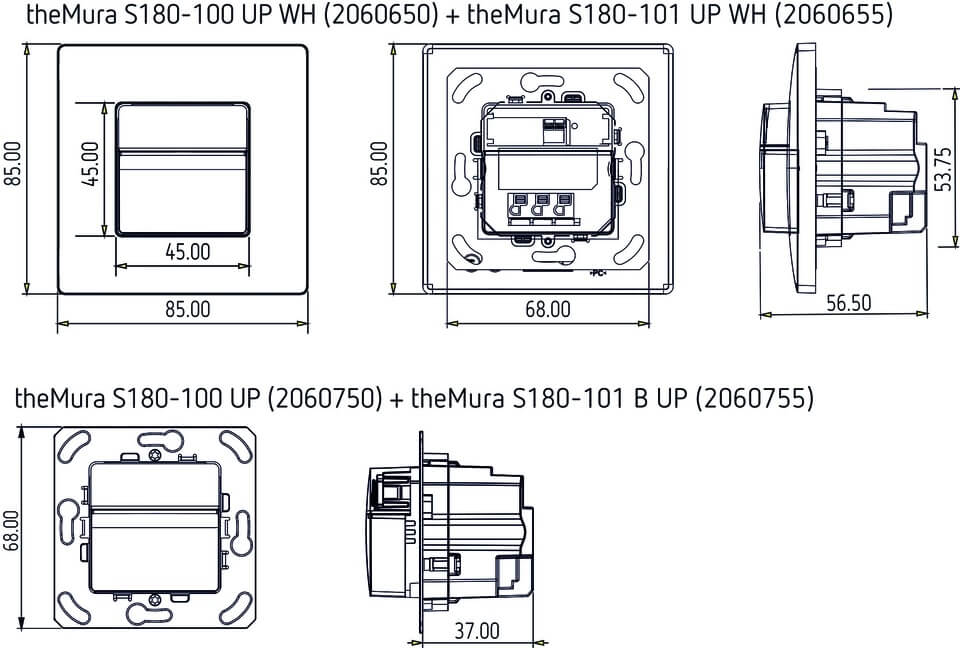

| Size of concealed housing | 55 mm |
| Switching output | Light | Presence |
| Detection range | 238 m² (14 x 17 m) |
| Detection angle | 170° |
| Ambient temperature | -15°C ... 45°C |
| Type of protection | IP 20 |
