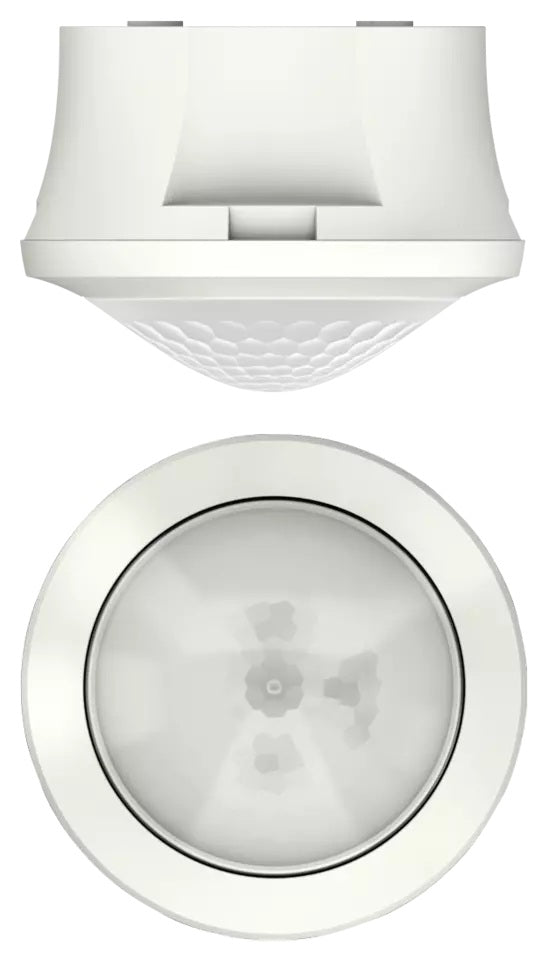

Theben The Mova S360-100 AP WH IP54 PIR Surface Mount Motion Detector
Theben The Mova S360-100 AP WH IP54 PIR Surface Mount Motion Detector
SKU SKU:Mova S360-100 AP WH
o11888v78 theMova S360100 AP WH Data sheet.pdf
Couldn't load pickup availability
Share
Technical Details:
**Lead Time 1 Week**
Functional Description:
Passive infra-red motion detector for ceiling installation surfacemounted
- Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 3m
- 1 channel light (Relay, 230 V)
- Automatic motion and brightness-dependent control for lighting
- Daylight sensor mode for brightness-dependent control of the lighting,
switchable via app
- Mixed light measurement
- Operation as fully automatic device
- Brightness switching value configurable, teach-in function
- Pulse function for staircase light time switch
- Time delay configurable
- Detection sensitivity configurable
- Test mode for checking function and detection area
- Ready for immediate use due to factory presetting (Brightness
switching value 300 lux, Time delay 10 min.)
- One of these optional remote controls is required for changing the
values and attitudes:
- Management remote control SendoPro
- Installation remote control theSenda P
- Optional user remote control: theSenda S
Technical Data:
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Installation height | 2 - 4 m |
| Installation type | Ceiling installation, Indoor |
| Colour | White |
| Power consumption | ~0.5 W |
| Light measurement | Mixed light measurement |
| Setting range brightness | 30 - 3000 lx |
| Light switch-off delay | 10 s - 60 min |
| Type of contact light | Relay 230 V/10 A µ-contact |
| Lamp types | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Incandescent/halogen lamp load | 2300 W |
| Compact and flourescent lamps | 1150 VA (cos φ = 0,5) |
| Inrush current | max. 400 A / 200 µs |
| LED lamp < 2 W | 25 W |
| LED lamp 2-8 W | 250 W |
| LED lamp > 8 W | 250 W |
| Type of connection | Spring terminals |
| Switching output | Light |
| Detection range | 50 m² (ø 8 m | 360°) |
| Detection angle | 360° |
| Ambient temperature | -15°C ... 50°C |
| Type of protection | IP 54 (when fitted) |
