Supermec Luminaire Push Button

Technical Data Sheet

Data Sheet

Description

The UH-UP operators are normally used in the chemical and petrochemical plants, off-shore platforms, refineries and any other industry where hazardous atmospheres (gas and combustible dust) are potentially present. The UH-UP operators range has been designed to meet the main requirements of power distribution, monitoring and signaling, and other electrical functions inside the hazardous area of the plant.

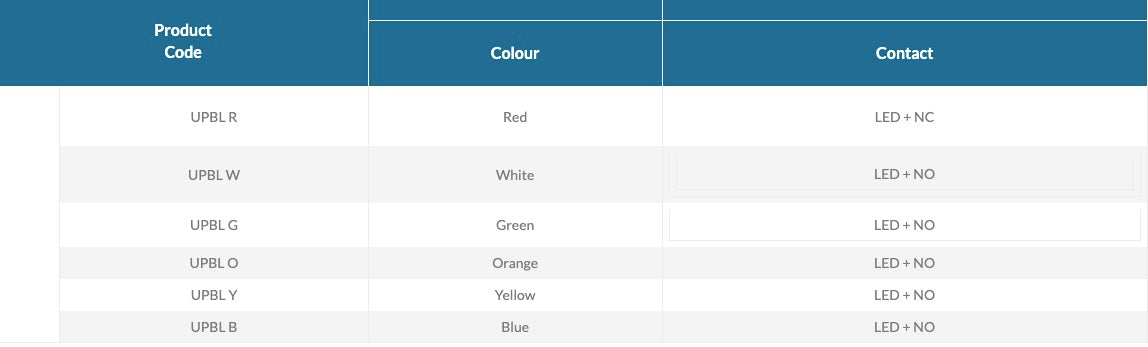

Spring-return luminaire push button unit. Bushing ø M32. Supplied complete with LED unit in different voltage and one electrical contacts as listed and as option, with different combinations of contacts NO and NC for a maximum number of four units (see table 1). Available in different colors as side listed.

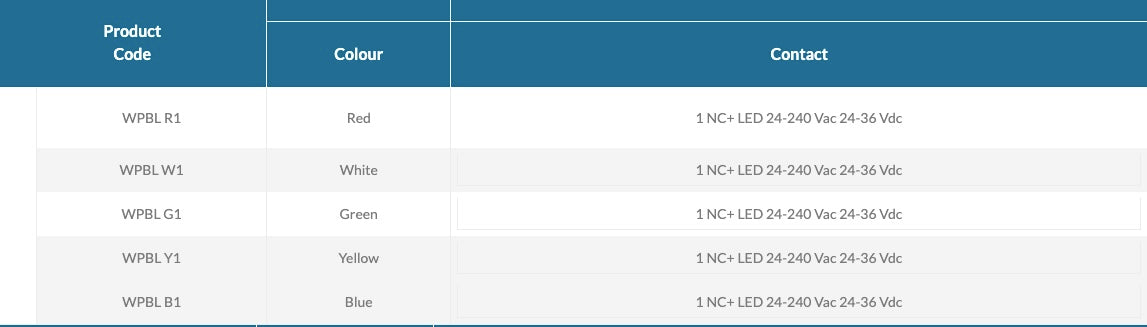

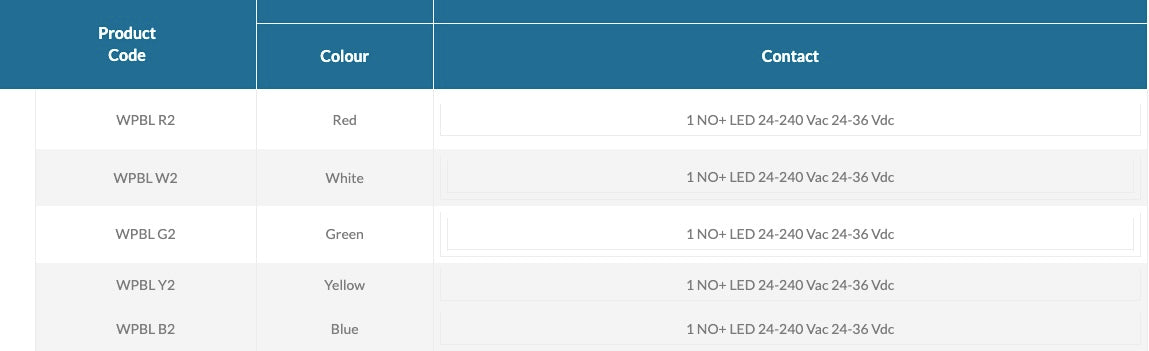

WPBL Spring-return luminaire push button unit, supplied complete with LED module with different voltage and one electrical contact as listed. Available in different colors as per side table.
