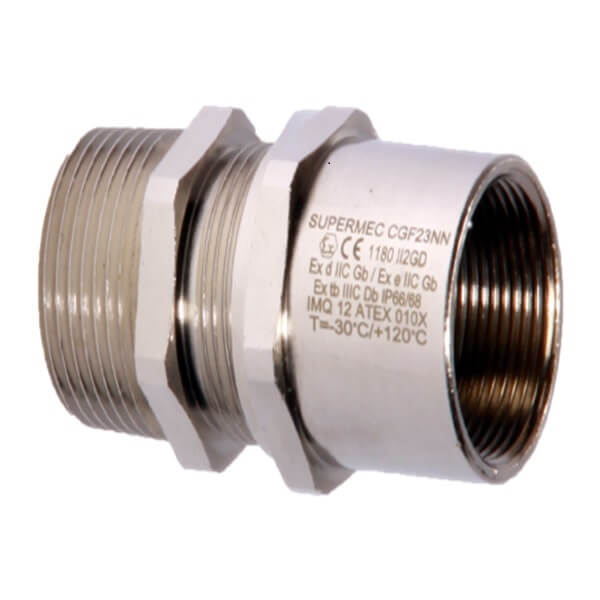

Supermec Cable Glands Unarmoured For Rigid and Flexible Conduct (zone 1 and 2) CGF Series
Supermec Cable Glands Unarmoured For Rigid and Flexible Conduct (zone 1 and 2) CGF Series
SKU SKU:CGF01MN
Couldn't load pickup availability
Share
Technical Data Sheet
Description
The cable glands are normally installed in the chemical and petrochemical plants, off-shore platforms, refineries and any other industry where hazardous atmospheres (gas and combustible dust) are potentially present.
The cable gland series are designed to allow direct entry of unarmoured or armoured cables into Ex d and Ex e enclosures to provide any electrical connection with external circuits.
The materials used to manufacture the cable glands have been studied to grant the maximum protection against the highly corrosive agents present in these industries.
They are available in:
- brass;
- nickel-plated brass;
- stainless steel AISI 316;
The O-ring and internal gaskets are made of neoprene (-40°c / +100°C) and for low and high temperature environments, of silicone (-60°C / +180°C).
All the equipment have the double marking for Ex d and Ex e installations.
The cable glands to be used with circuit Ex i can be requested with pressure cap painted light blue.
