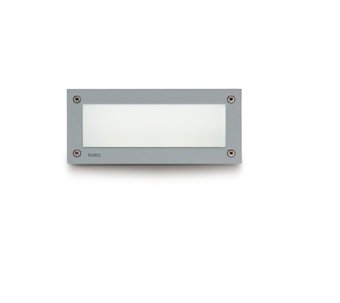

SIMES MINIBRIQUE WALL Recessed (IP65)

Watage: 4.5W

Lamp Type: LED

Projector IP rating: IP65

Dimensions: 190mm x 82mm x 75mm

Aluminium die cast housing in EN AB-47100 (low copper content) and extruded EN AW-6060 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. EPDM gaskets. Painting Process : 3 Step Process

1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating.

2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content.

3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 07

Reflector in 99.98% pure anodized aluminium . Opal toughened glass diffuser. LOR 33%

Installation is simple with polypropylene recessing box. Appropriate plastic supports reinforce the center of the structure. This strategy prevents buckling during the concrete wall construction phase. The luminaires are fixed in the recessing box by stainless steel screws. The reeded glass lightly conceals the view inside the luminaire. The glass is safely protected against blows or vandalism. The trim and the grill hold the glass diffuser in place while covering the rim of the recessing box and the holes. This assures that wall imperfections remain hidden.

Double cable entries.

Isolation: CLASS I .

Available colours: Aluminium grey (cod.14).

Weight: 1 Kg

Glow Wire test: --

Lamp not included.
