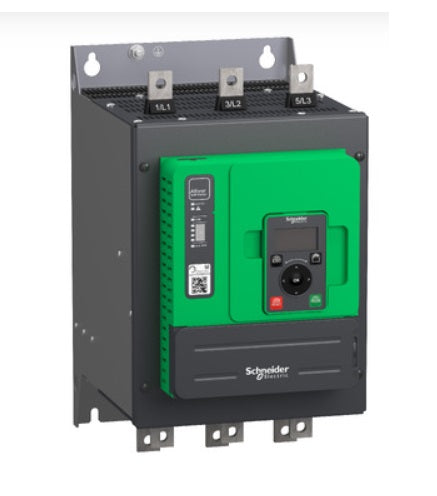

Schneider Soft Starter Altistart 480 170A 208 to 690V AC Control Supply 110 to 230V AC

Schneider Soft Starter Altistart 480 170A 208 to 690V AC Control Supply 110 to 230V AC

SKU SKU:ATS480C17Y

PDF Datasheet

Regular price $ 3,126.00 SGD
Regular price $ 3,408.00 SGD Sale price $ 3,126.00 SGD
Sale Sold out
Shipping calculated at checkout.

Request For Quote

Description:

Lead time 2-3 weeks

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 170A in normal duty, it supplies motor from 45kW to 160kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 200mm (width) x 272mm (depth) x 340mm (height) and it weighs 12,4kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.

Specification:

Main
Range of product Altivar Soft Starter ATS480
product or component type Soft starter
product destination Asynchronous motors
Product specific application Process and infrastructures
Device short name ATS480
Network number of phases 3 phases
Utilisation category AC-3A
AC-53A
Ue power supply voltage 208...690 V - 15...10 %
power supply frequency 50...60 Hz - 20...20 %
[Ie] rated operational current Normal duty: 170.0 A (at <40 °C)
rated current in heavy duty 140.0 A at 40 °C for heavy duty
Torque control True
IP degree of protection IP00
