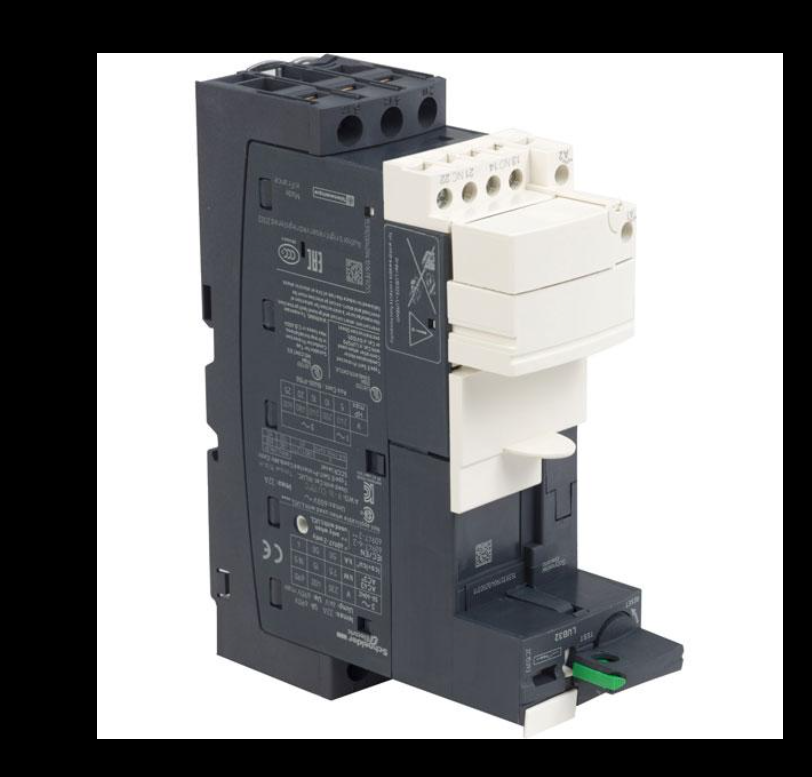

Schneider LUB32, TESYS U,POWER BASE,32A

The Schneider Electric LUB32 is a TeSys U standard power base designed for 3-phase, non-reversing motor starter applications. It is rated for a conventional free-air thermal current of 32 A and an operational voltage up to 690 V AC.

Product description:

• Manufacturer: Schneider Electric
• Product: LUB32
• Range: TeSys U / TeSys Ultra
• Type: Standard power base, non-reversing
• Poles: 3P
• Current rating: 32 A
• Rated operational voltage: Up to 690 V AC
• Control: Screw-clamp control
• Application: 3-phase motor control and DOL starter applications
• Control type: Basic control
• Auxiliary contacts: 1 NO + 1 NC
• Design: Modular, compact plug-and-play construction
• Mounting: DIN-rail mounting and screw fixing
• Motor application: Up to approximately 15 kW at 400 V, when appropriately configured with a compatible TeSys U control unit.
