Name: RS PRO 220-240V Electronic Ballast x2Pcs
Brand: R1
SKU: 7785313
Price: 145.0 SGD
Availability: InStock

Technical data sheets

Data Sheet

285 mm T5 HO, T8, TC-F, TC-L

285 mm T5 HO, T8, TC-L

285 mm T5

360 mm T5 HO, T8, TC-F, TC-L

360 mm T5

*Check stock before ordering. Lead time 4 working days*

Product Details

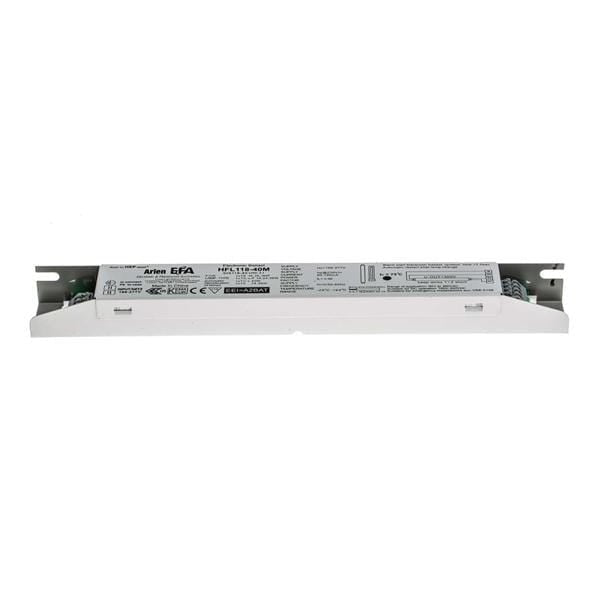

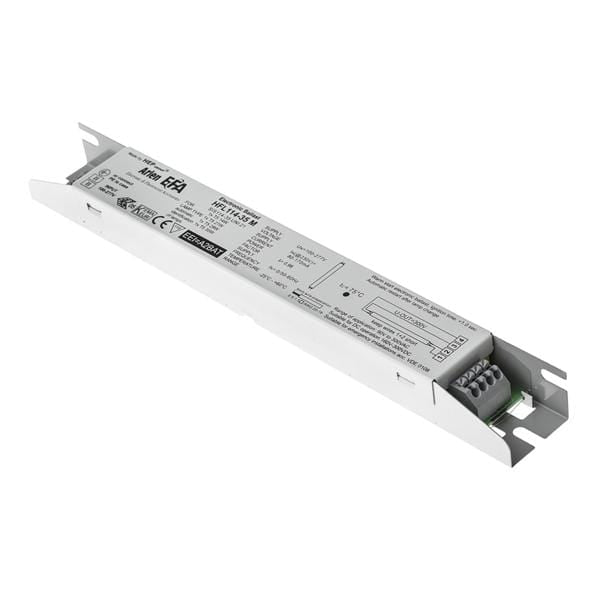

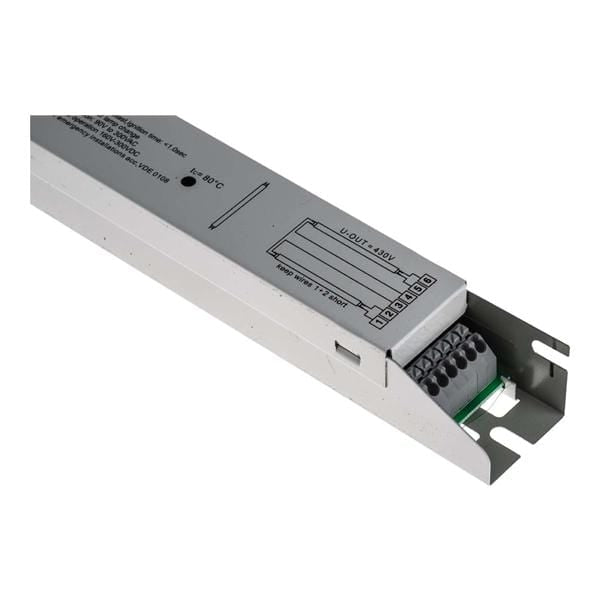

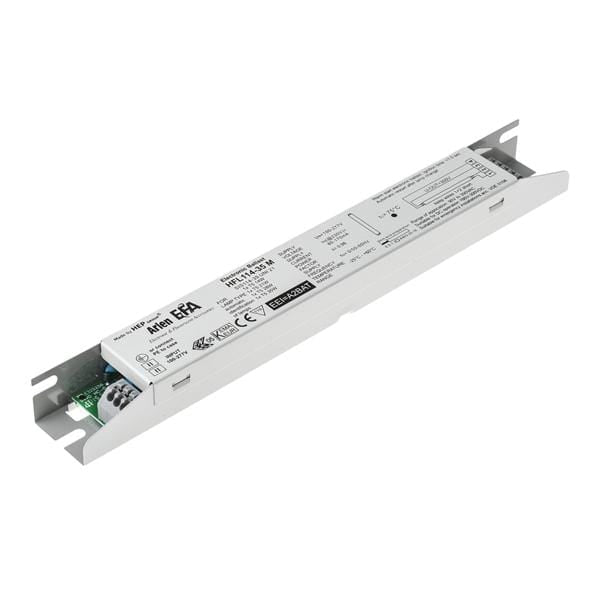

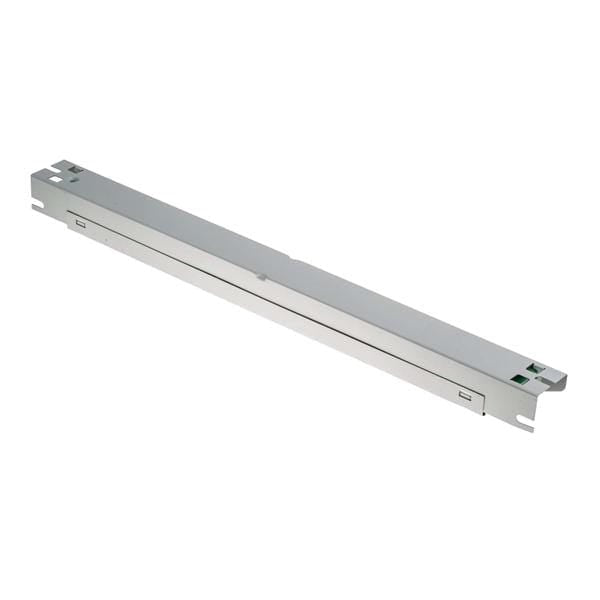

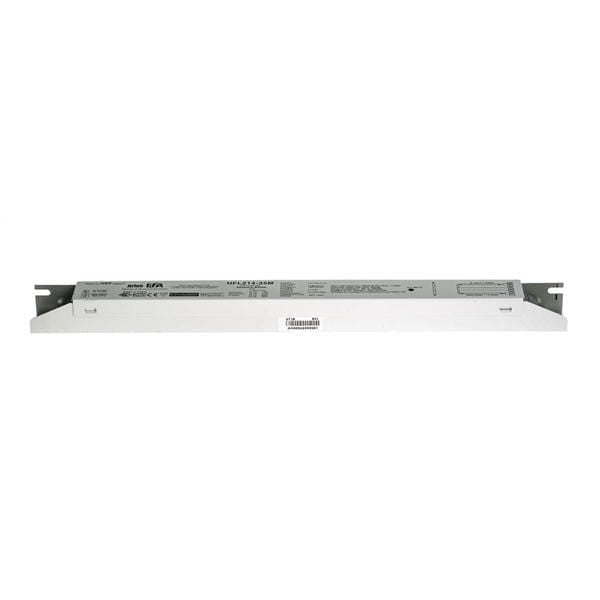

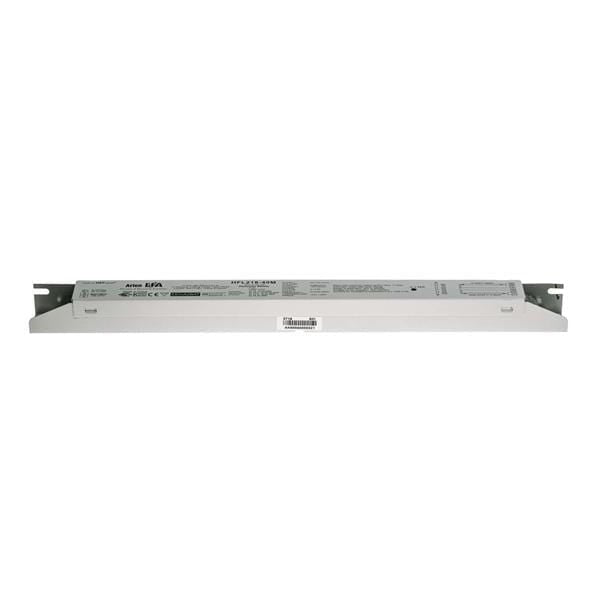

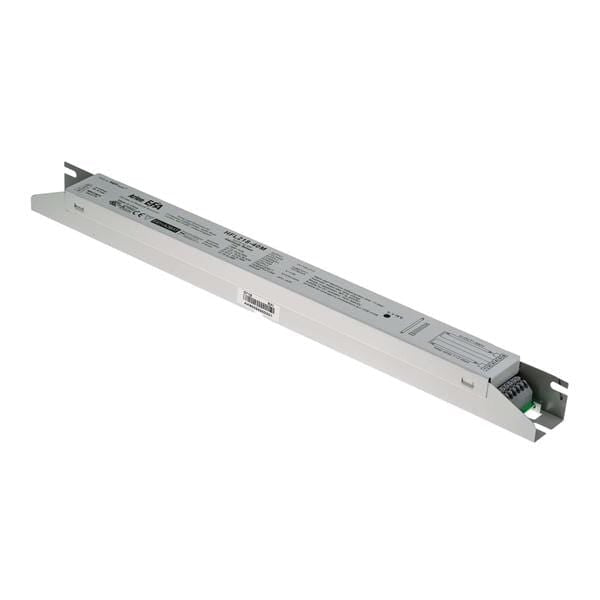

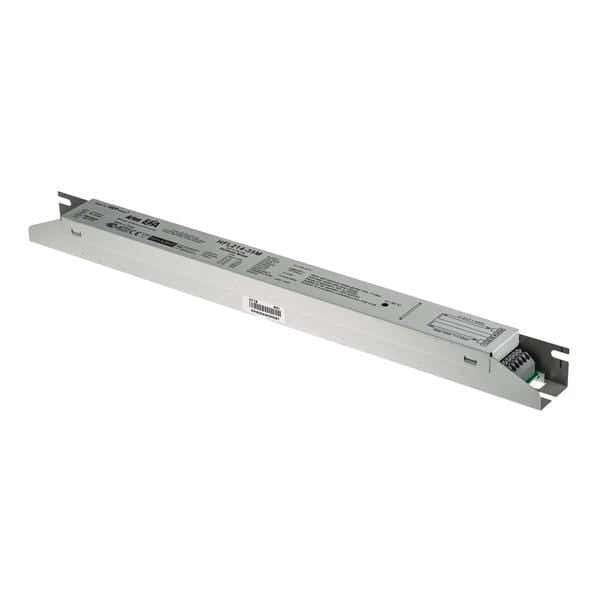

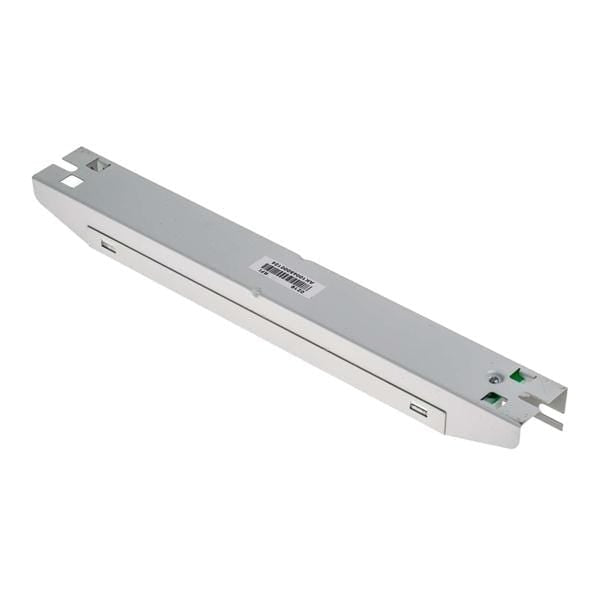

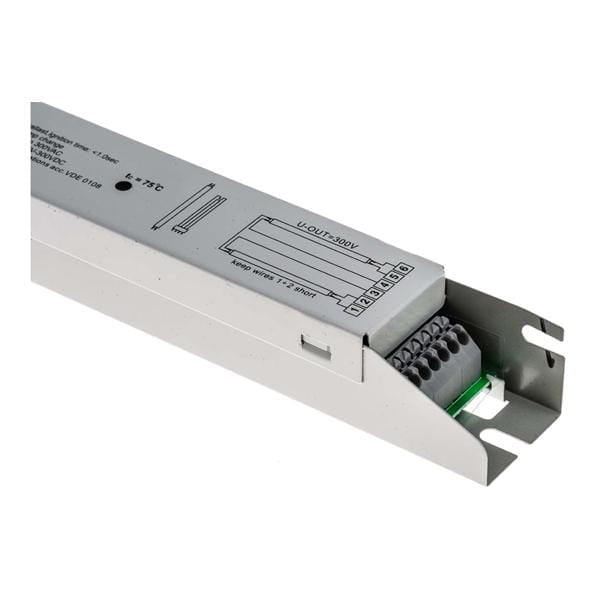

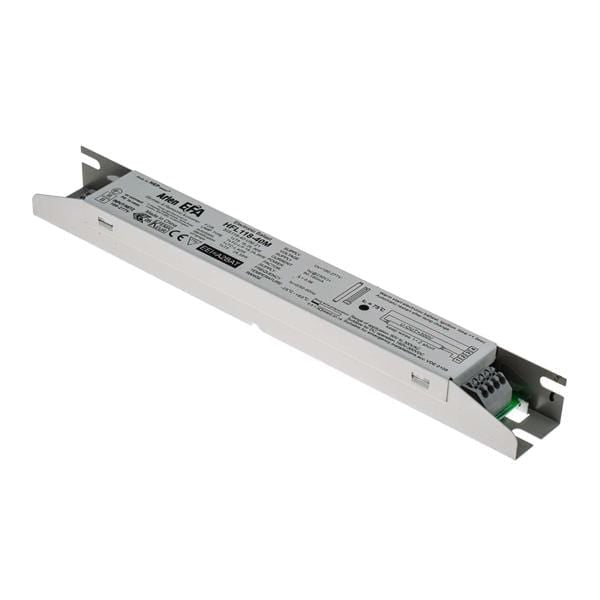

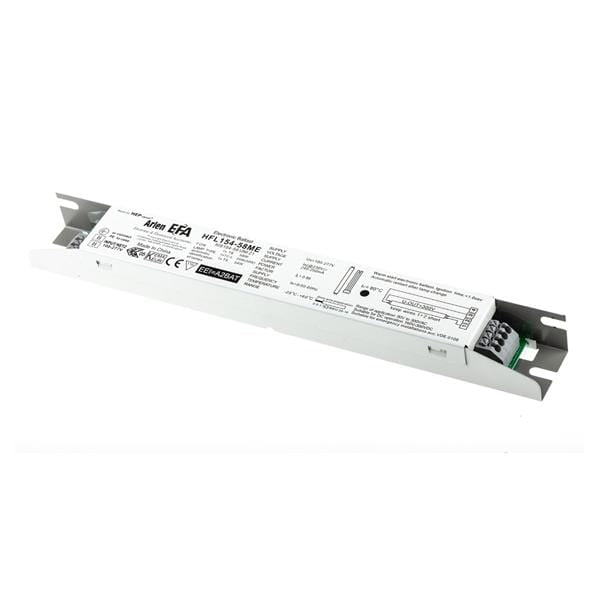

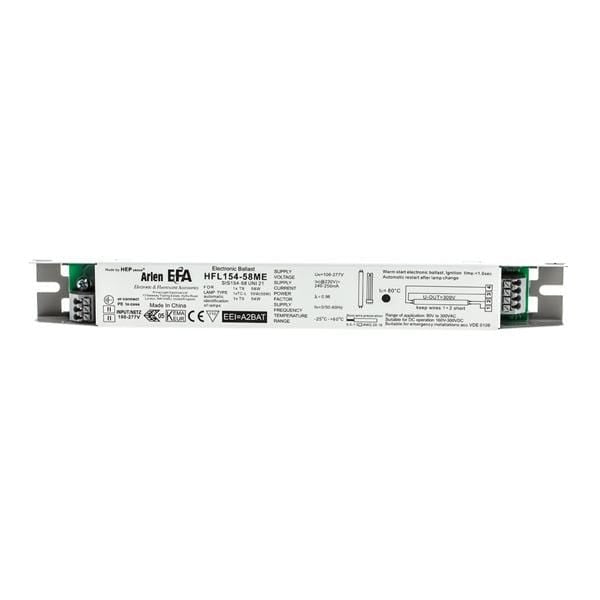

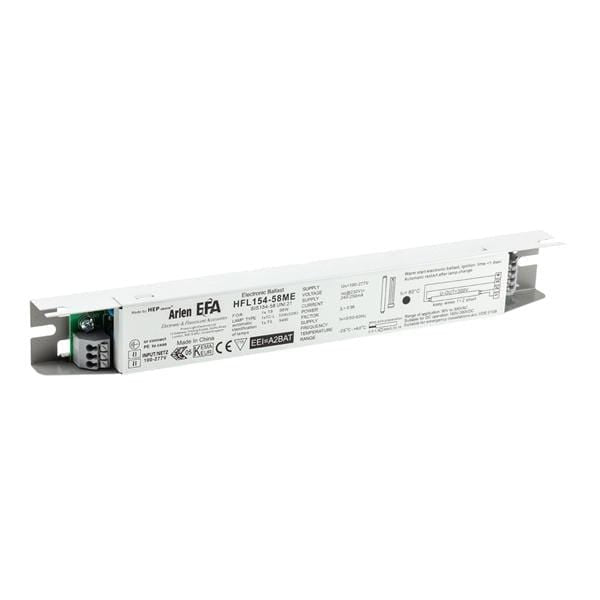

Universal Voltage High Frequency Electronic Ballast

This ELT Linear high frequency ballast is built using environmentally friendly components and has a long life of 80,000 hours. This universal voltage electronic ballast operates T5 lamps.

80,000 hour ballast warranty
Optimal operation at universal rated voltages between 100-277V ac and 160-300V dc
Automatic identification of lamp type
Lamp warm start within 1 second
Auto cut off protection at lamp end of life
Auto restart after replacement of defective lamp
Short circuit protection
Open circuit safety
High frequency lamp operation

Specifications

285 mm T5 HO, T8, TC-F, TC-L

Attribute	Value
Wattage	18 → 36 (T8) W, 18 → 36 (TC-F) W, 18 → 40 (TC-L) W, 24 and 39 (T5 HO) W
Ballast Type	Electronic
Supported Lamp Shape	T5 HO, T8, TC-F, TC-L
Supported Lamp Type	Compact Fluorescent, Fluorescent
Voltage Rating	220 → 240 V
Dimmable	No
High Frequency	Yes
Length	285 mm
Width	30 mm
Height	26mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
EU Energy Efficiency Rating	A2

285 mm T5 HO, T8, TC-L

Attribute	Value
Wattage	54 (T5 HO) W, 55 (TC-L) W, 58 (T8) W
Ballast Type	Electronic
Supported Lamp Shape	T5 HO, T8, TC-L
Supported Lamp Type	Compact Fluorescent, Fluorescent
Voltage Rating	220 → 240 V
Dimmable	No
High Frequency	Yes
Length	285 mm
Width	30 mm
Height	26mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
EU Energy Efficiency Rating	A2

285 mm T5

Attribute	Value
Wattage	14 → 35 (T5) W
Ballast Type	Electronic
Supported Lamp Shape	T5
Supported Lamp Type	Fluorescent
Voltage Rating	220 → 240 V
Dimmable	No
High Frequency	Yes
Length	285 mm
Width	30 mm
Height	21mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
EU Energy Efficiency Rating	A2

360 mm T5 HO, T8, TC-F, TC-L

Attribute	Value
Wattage	18 → 36 (T8) W, 24 → 36 (TC-F) W, 24 → 39 (T5 HO) W, 34 → 40 (TC-L) W
Ballast Type	Electronic
Supported Lamp Shape	T5 HO, T8, TC-F, TC-L
Supported Lamp Type	Compact Fluorescent, Fluorescent
Voltage Rating	220 → 240 V
Dimmable	No
High Frequency	Yes
Length	360 mm
Width	30 mm
Height	26mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
EU Energy Efficiency Rating	A2

360 mm T5

Attribute	Value
Wattage	14 → 35 (T5) W
Ballast Type	Electronic
Supported Lamp Shape	T5
Supported Lamp Type	Fluorescent
Voltage Rating	220 → 240 V
Dimmable	No
High Frequency	Yes
Length	360 mm
Width	30 mm
Height	26mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
EU Energy Efficiency Rating	A2
