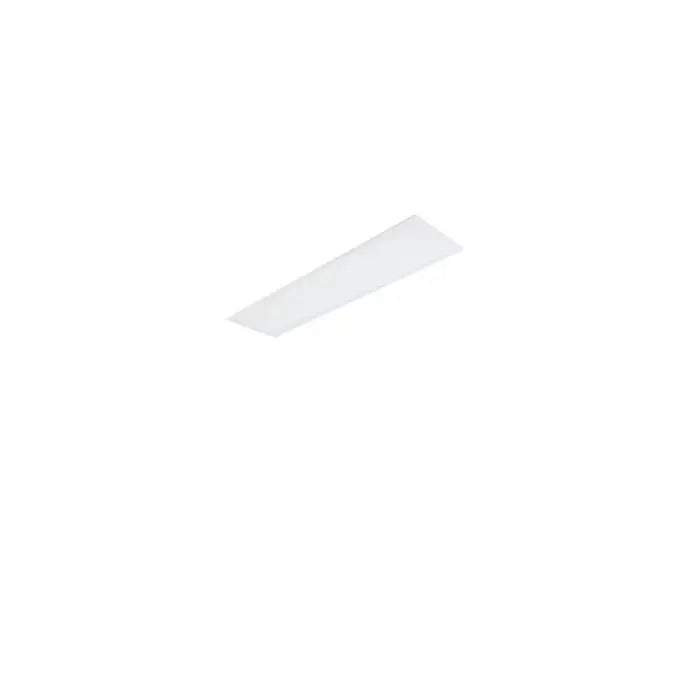

Philips SmartBright Dual Select Direct-lit panel RC170B LED31_37_41/SCCT PSU W30L120 GM x4Pcs
Philips SmartBright Dual Select Direct-lit panel RC170B LED31_37_41/SCCT PSU W30L120 GM x4Pcs
SKU:911401851387
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
SmartBright Dual Select Direct-lit panel, 120 lm/W, Multi Color Temperature
RC170B LED31_37_41/SCCT PSU W30L120 GM (911401851387)
Leadtime: 12 To 14 Weeks
| GENERAL INFORMATION | |
| Number Of Gear Units | 1 unit |
| Gear | - |
| Driver Included | Yes |
| Light Source Engine Type | LED |
| Value Ladder | Value |
| Warranty Period | 3 years |
| LIGHT TECHNICAL | |
| Luminous Flux | 3,100 lm |
| Correlated Color Temperature (Nom) | Selectable |
| Luminous Efficacy (rated) (Nom) | 120 lm/W |
| Color Rendering Index (CRI) | >80 |
| Beam Angle Of Light Source | 120 degree(s) |
| Light Source Color | Multi Color Temperature |
| Optic Type | Beam angle 120° |
| Luminaire Light Beam Spread | 120° |
| Unified Glare Rating CEN | 23 |
| Effective Projected Area | 0.353 m² |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 200 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Inrush Current | 30 A |
| Inrush Time | 0.3 ms |
| Power Consumption | 26 W |
| Power Factor (Fraction) | 0.9 |
| Connection | - |
| Cable | - |
| Number Of Products On MCB Of 16 A Type B | 13 |
| Suitable For Random Switching | No |
| Protection Class IEC | Safety class II |
| CONTROLS AND DIMMING | |
| Dimmable | No |
| Control Interface | - |
| Maximum Dim Level | Not applicable |
| MECHANICAL AND HOUSING | |
| Housing Material | Steel |
| Reflector Material | Steel |
| Optic Material | Polymethyl methacrylate |
| Optical Cover Material | Polystyrene |
| Housing Color | White RAL 9003 |
| Mounting Device | - |
| Optical Cover Finish | Opal |
| Overall Length | 1,195 mm |
| Overall Width | 295 mm |
| Overall Height | 59 mm |
| Dimensions (Height X Width X Depth) | 59 x 295 x 1195 mm |
| Ingress Protection Code | IP20 [Finger-protected] |
| Mech. Impact Protection Code | IK02 [0.2 J standard] |
| Optical Cover Type | PS |
| Net Weight (Piece) | 1.500 kg |
| APPROVAL AND APPLICATION | |
| Glow-wire Test | Temperature 650 °C, duration 30 s |
| Flammability Mark | For mounting on normally flammable surfaces |
| CE Mark | No |
| ENEC Mark | - |
| Photobiological Risk | Photobiological risk group 0 @ 200mm to EN62471 |
| Photobiological Risk Specification | 0.2 m |
| EU RoHS Compliant | Yes |
| Performance Ambient Temperature Tq | 25 °C |
| Ambient Temperature Range | -10 to +45 °C |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Luminous Flux Tolerance | -10%,+15% |
| Initial Chromaticity | (0.38, 0.38) SDCM≤5 |
| Power Consumption Tolerance | +/-10% |
| PRODUCT DATA | |
| Order Product Name | RC170B LED31_37_41/SCCT PSU W30L120 GM |
| Full Product Name | RC170B LED31_37_41/SCCT PSU W30L120 GM |
| Full Product Code | 8.72017E+14 |
| Order Code | 9.11402E+11 |
| Material Nr. (12NC) | 9.11402E+11 |
| Numerator - Quantity Per Pack | 1 |
| EAN/UPC - Product/Case | 8.72017E+12 |
| Numerator - Packs Per Outer Box | 4 |
| EAN/UPC - Case | 8.72017E+12 |
