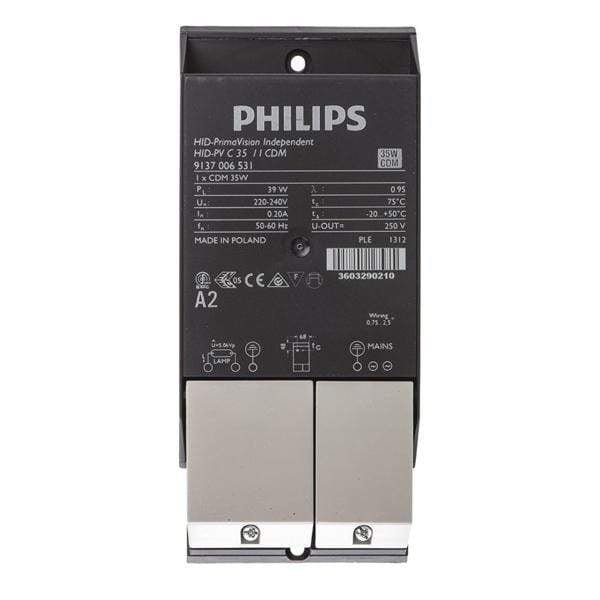

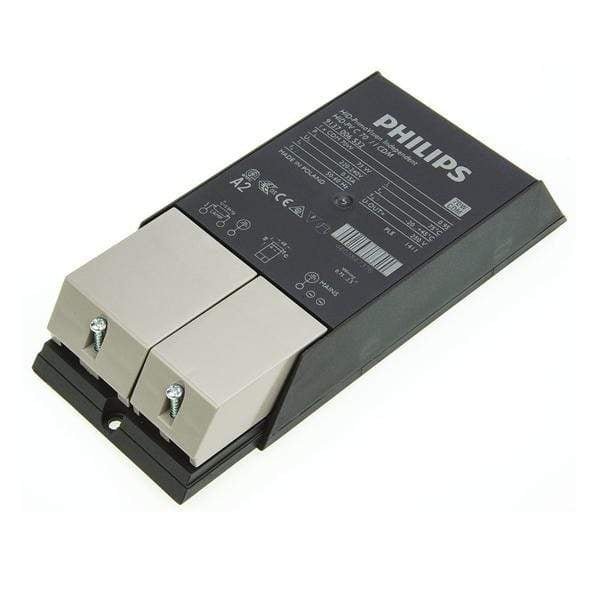

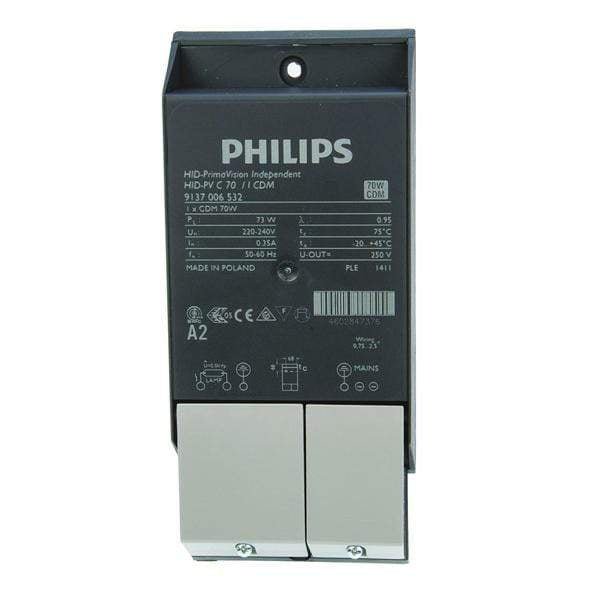

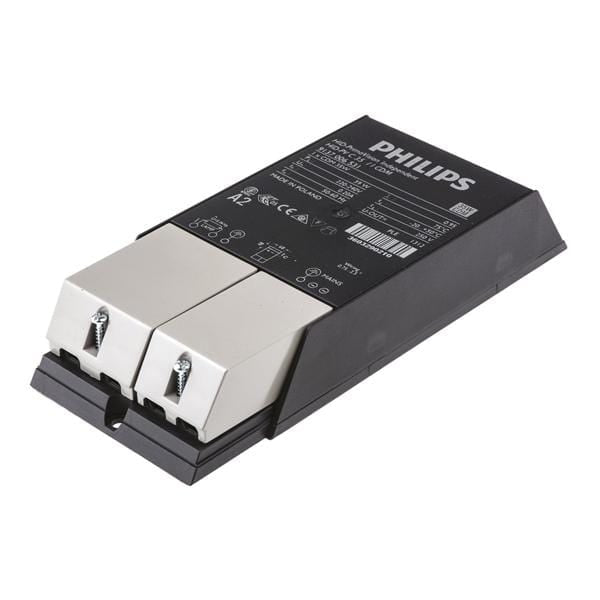

Philips Lighting 220-240V Electronic Lighting Ballast x2Pcs
Philips Lighting 220-240V Electronic Lighting Ballast x2Pcs
SKU SKU:85973700
Regular price
$ 110.00 SGD
Regular price
$ 110.00 SGD
Sale price
$ 110.00 SGD
Unit price
/
per
Shipping calculated at checkout.
14 in stock
Couldn't load pickup availability
Share
Technical data sheets
Data Sheet
*Check stock before ordering. Lead time 4 working days*
Product Details
High Frequency for Ceramic Metal Halide Lamps
High frequency, electronic microprocessor controlled ballasts for CDM and other ceramic metal halide lamps giving extended lamp life of 30% against magnetic ballasts
End of life detection
Low energy losses

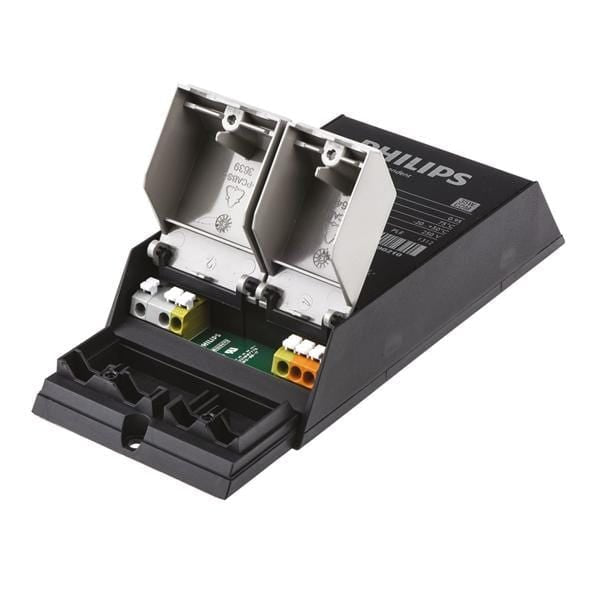

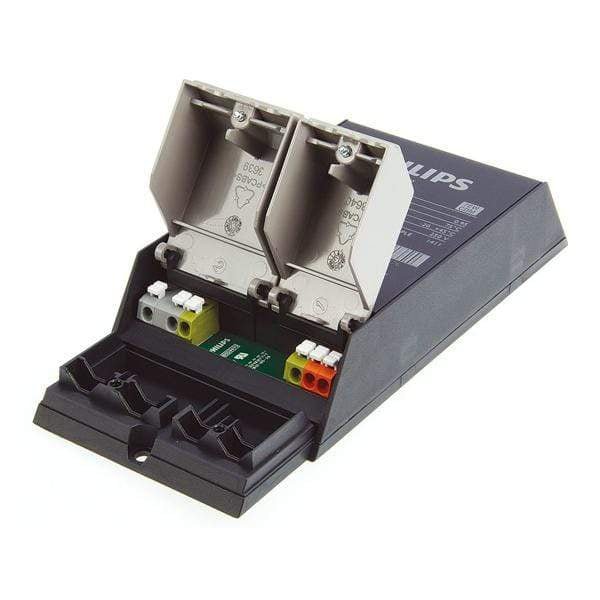

Push in contacts for ease of wiring
Accurate control of lamp reduces colour differences and initial lumen spread
Independent - I type
Designed to be mounted behind a false ceiling
Integral strain relief
Standard – S type
Designed to be mounted with a luminaire
Horizontal or vertical mounting
Specifications
| Attribute | Value |
| Wattage | 35 W, 70 W |
| Ballast Type | Electronic |
| Supported Lamp Type | Ceramic Metal Halide |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| High Frequency | Yes |
| Length | 188 mm |
| Width | 82.7 mm |
| Height | 35mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +45°C |
