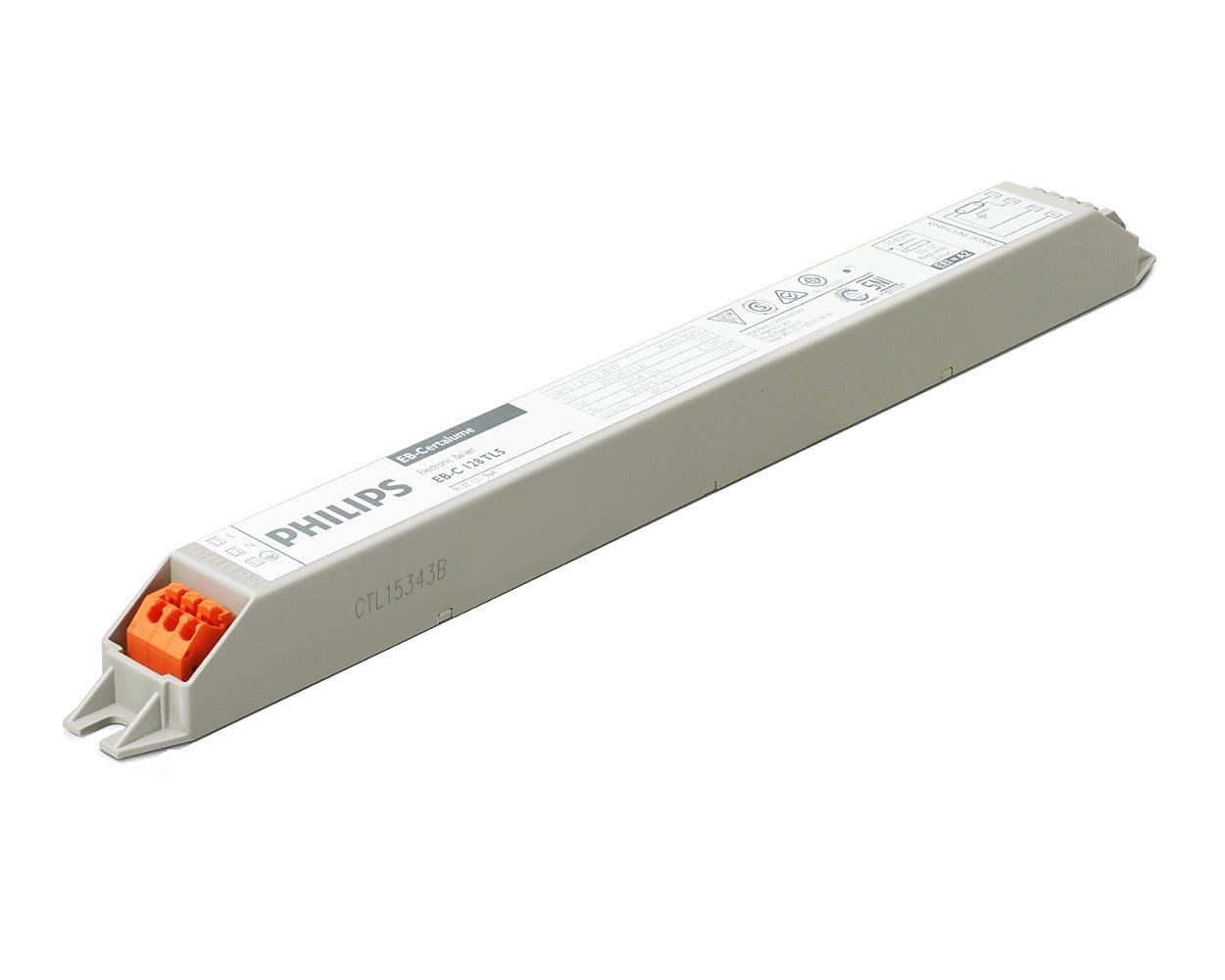

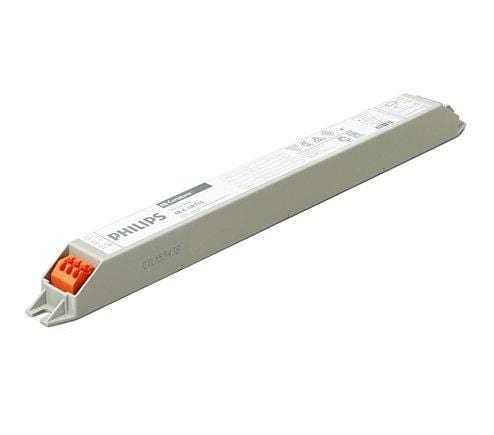

PHILIPS EB-Certalume TL5 220-240V 50/60Hz Flourescent Ballast
PHILIPS EB-Certalume TL5 220-240V 50/60Hz Flourescent Ballast
SKU SKU:913713196214
Regular price
$ 15.00 SGD
Regular price
$ 16.50 SGD
Sale price
$ 15.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
Share
General Information
Operating and Electrical
Wiring
System characteristics
Temperature
Mechanical and Housing
Approval and Application
| Lamp Type |
TL5
|
| Number of Lamps |
1 piece/unit
|
| Automatic Restart |
No
|
| Input Voltage |
220 to 240 V
|
| Input Frequency |
50 to 60 Hz
|
| Operating Frequency (Nom) |
40-60 kHz
|
| Power Factor 100% Load (Nom) |
0.97
|
| Mains Voltage Performance (AC) |
220-240V-50-60HZ
|
| Mains Voltage Safety (AC) |
-10%-+10%
|
| Earth Leakage Current (Max) |
0.7 mA
|
| Power Losses (Nom) |
3.5 W
|
| Connector Type Input Terminals |
250 manual connector [ Suitable for manual wiring and easy release button]
|
| Color Input Terminals |
Orange
|
| Color Output Terminals |
Grey
|
| Connector Type Output Terminals |
250 manual connector [ Suitable for manual wiring and easy release button]
|
| Cable Length Hot Wiring |
0.75 m
|
| Wire Striplength |
7.5-8.5 mm
|
| Dual Fixture Master/Slave |
No [ Master/Slave operation not possible]
|
| Input Terminal Cross Section |
0.50-1.50 mm²
|
| Output Terminal Cross Section |
0.50-1.50 mm²
|
| Cable Capacity Output Wires to Earth (Max) |
120 pF
|
| Rated Ballast-Lamp Power |
14 W / 21 W
|
| Rated Lamp Power on TL5 |
14 W / 21W
|
| System Power on TL5 |
18.3 W / 24 W
|
| Lamp Power on TL5 |
14.8 W / 20 W
|
| Power Loss on TL5 |
3.5 W / 4 W
|
| T-Case Lifetime (Nom) |
75 °C
|
| Housing |
L 275x20x21
|
| Energy Efficiency Index |
A2
|
| IP Classification |
IP 20 [ Ingress Protection 20]
|
| Overvoltage Protection 276Vac |
48 h
|
| EMI 9 kHz ... 30 MHz |
EN55015
|
| Vibration Standard |
IEC68-2-6 F c
|
| length |
275 mm
|
| diameter |
21 mm
|
