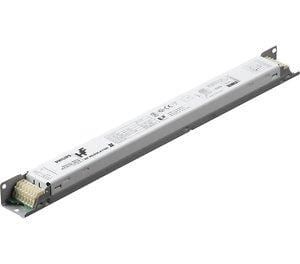

PHILIPS HF-R TL5/PLL Flourescent Ballast x12PCs
PHILIPS HF-R TL5/PLL Flourescent Ballast x12PCs
SKU SKU:913700633166
Regular price
$ 1,025.31 SGD
Regular price
$ 1,097.14 SGD
Sale price
$ 1,025.31 SGD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Share
General Information
Operating and Electrical
Wiring
System characteristics
Temperature
Controls and Dimming
Mechanical and Housing
Emergency Operation
Approval and Application
| Application Code |
EII
|
| Type Version |
mk2
|
| Lamp Type |
TL5/PL-L
|
| Number of Lamps |
2 piece/unit
|
| Number of Products on MCB (16A Type B) (Nom) |
28
|
| Automatic Restart |
Yes
|
| Input Voltage |
220 to 240 V
|
| Input Frequency |
50 to 60 Hz
|
| Operating Frequency (Max) |
95 kHz
|
| Operating Frequency (Min) |
45 kHz
|
| Ignition Method |
Warm Start
|
| Crestfactor (Max) |
1.7
|
| Power Factor 100% Load (Nom) |
0.99
|
| Ignition Time (Max) |
0.2 s
|
| Mains Voltage Performance (AC) |
-8%-+6%
|
| Mains Voltage Safety (AC) |
-10%-+10%
|
| Earth Leakage Current (Max) |
0.5 mA
|
| Inrush Current Width |
0.25 ms
|
| Power Losses (Nom) |
7.3 W
|
| Inrush Current Peak (Max) |
27 A
|
| Connector Type Input Terminals |
WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
|
| Connector Type Output Terminals |
WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
|
| Connector Type Control Input Terminals |
WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
|
| Wire Striplength |
8.0-9.0 mm
|
| Dual Fixture Master/Slave |
- [ not specified]
|
| Control Input Terminal Cross Section |
0.50-1.00 mm²
|
| Input Terminal Cross Section |
0.50-1.00 mm²
|
| Output Terminal Cross Section |
0.50-1.00 mm²
|
| Auto Insert (ALF/ADS) Wire Cross Section |
0.5 mm²
|
| Rated Ballast-Lamp Power |
24 W
|
| T-Ambient (Max) |
50 °C
|
| T-Ambient (Min) |
-20 °C
|
| T-Storage (Max) |
80 °C
|
| T-Storage (Min) |
-25 °C
|
| Stable Lamp Operation Temperature |
Not Specified
|
| T-Ignition (Max) |
50 °C
|
| T-Ignition (Min) |
0 °C
|
| Control Interface |
1-10V
|
| Regulating Level Power |
1%-100%
|
| Control Input Protection |
Yes (Basic insulation)
|
| Housing |
L 359x30x22
|
| Battery Voltage Lamp Ignition |
196 V
|
| Battery Voltage Lamp Operation |
154-276
|
| Energy Efficiency Index |
A1 BAT
|
| IP Classification |
IP 20 [ Ingress Protection 20]
|
| EMI 9 kHz ... 30 MHz |
EN55015
|
| EMI 30 MHz ... 1000 MHz |
EN55022 level B
|
| Safety Standard |
IEC 61347-2-3
|
| Performance Standard |
IEC 60929
|
| Quality Standard |
ISO 9000:2000
|
| Environmental Standard |
ISO 14001
|
| Harmonic Current Emission Standard |
IEC 61000-3-2
|
| EMC Immunity Standard |
IEC 61547
|
| Vibration Standard |
IEC68-2-6 F c
|
| Bumps Standard |
IEC 68-2-29 Eb
|
| Humidity Standard |
EN 61347-2-3 clause 11
|
| Approval Marks |
CE marking ENEC certificate VDE-EMV certificate |
| Temperature Marking |
Yes
|
| Emergency Standard |
IEC 60598-2-22
|
| Hum And Noise Level |
Inaudible
|
