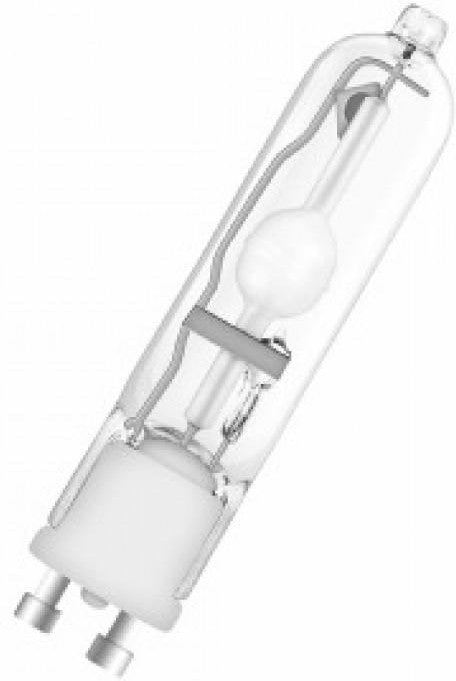

HCI-TF 35W/930 WDL POWERBALL GU6.5 12X1
Electrical data
| Nominal wattage |
20 W / 35 W |
| Rated wattage |
20.00 W |
| Lamp current |
0.22 A |
| Ignition voltage |
3.0 / 5.0 kVp
|
Photometrical data
| Luminous flux |
1700 lm |
| Luminous efficacy |
85 lm/W |
| Color rendering index Ra |
89 |
| Color temperature |
3000 K |
| Light color |
830 |
| Rated LLMF at 2,000 h |
0.80 |
| Rated LLMF at 4,000 h |
0.75 |
| Rated LLMF at 6,000 h |
0.73 |
| Rated LLMF at 8,000 h |
0.70 |
| Rated LLMF at 12,000 h |
0.69 |
| UV protection |
Yes |
Dimensions & weight
| Diameter |
13.0 mm |
| Length |
57.0 mm |
| Light center length (LCL) |
30.0 mm |
| Product weight |
8.10 g |
Temperatures & operating conditions
| Maximum permitted outer bulb temperature |
380 °C |
| Maximum permitted pinch temperature |
330 °C |
Lifespan
| Rated lamp survival factor at 2,000 h |
0.99 |
| Rated lamp survival factor at 4,000 h |
0.98 |
| Rated lamp survival factor at 6,000 h |
0.97 |
| Rated lamp survival factor at 8,000 h |
0.96 |
| Rated lamp survival factor at 12,000 h |
0.80 |
| Lifespan B50 |
15000 h
|
| Operation mode LLMF/LSF |
ECG |
Additional product data
| Base (standard designation) |
GU6.5 |
| Product remark |
Only for operation with electronic control gear with 70…400 Hz square-wave current |
| System guarantee level |
3 (2/5) |
| Mercury content |
3.5 mg |
Capabilities
| Dimmable |
No |
| Burning position |
Any |
| Enclosed luminaire required |
Yes |
Certificates & standards
| Energy efficiency class |
A |
| Energy consumption |
22 kWh/1000h |
Country-specific categorizations
| ILCOS |
MT/UB-20/830-H/L-GU6.5-13.3/30 |
|
