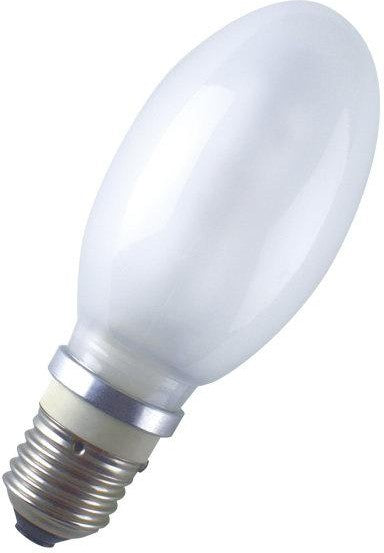

HCI-E/P 150W/830WDL POWERBALL COATED E27 12X1
Electrical data
| Nominal wattage |
35W / 50W / 70W /100W / 150W |
| Rated wattage |
53.00 W |
| Lamp current |
0.76 A |
| PFC capacitor at 50 Hz |
10 µF
|
| Ignition voltage |
3.6 / 5.0 kVp
|
Photometrical data
| Rated lamp efficacy (standard condition) |
75 lm/W |
| Rated luminous flux |
4000 lm |
| Color rendering index Ra |
85 |
| Color temperature |
3000 K |
| Light color |
830 |
| Rated LLMF at 2,000 h |
0.74 |
| Rated LLMF at 4,000 h |
0.68 |
| Rated LLMF at 6,000 h |
0.64 |
| Rated LLMF at 8,000 h |
0.61 |
| Rated LLMF at 12,000 h |
0.57 |
| UV protection |
Yes |
Dimensions & weight
| Diameter |
54.0 mm |
| Length |
138.0 mm |
| Product weight |
76.00 g |
Temperatures & operating conditions
| Maximum permitted outer bulb temperature |
330 °C |
| Maximum permitted base edge temperature |
190 °C |
Lifespan
| Rated lamp survival factor at 2,000 h |
0.99 |
| Rated lamp survival factor at 4,000 h |
0.97 |
| Rated lamp survival factor at 6,000 h |
0.90 |
| Rated lamp survival factor at 8,000 h |
0.80 |
| Rated lamp survival factor at 12,000 h |
0.50 |
| Lifespan B50 |
12000 h |
| Operation mode LLMF/LSF |
50 Hz |
Additional product data
| Base (standard designation) |
E27 |
| Design / version |
Coated |
| System guarantee level |
3 (1/5) |
| Mercury content |
6.7 mg |
Capabilities
| Dimmable |
Yes
|
| Burning position |
Any |
| Enclosed luminaire required |
No |
Certificates & standards
| Energy efficiency class |
A |
| Energy consumption |
59 kWh/1000h |
Country-specific categorizations
| ILCOS |
MES/UB-50/830-H/SL-E27-57/144 |
|
