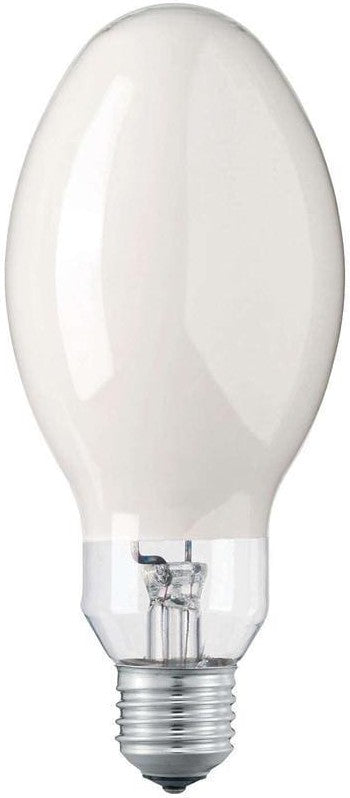

HCI-ET 70W/830 SUPER 4Y E27 24X1 OSRAM
Electrical data
| Nominal wattage |
50W / 70W |
| Rated wattage |
56.00 W |
| Lamp current |
0.75 A |
| PFC capacitor at 50 Hz |
10 µF
|
| Nominal voltage |
86 V |
| Ignition voltage |
1.8 / 5.0 kVp
|
Photometrical data
| Rated lamp efficacy (standard condition) |
109 lm/W |
| Rated luminous flux |
6100 lm |
| Color rendering index Ra |
≥80 |
| Color temperature |
3000 K |
| Light color |
830 |
| Rated LLMF at 2,000 h |
0.92 |
| Rated LLMF at 4,000 h |
0.90 |
| Rated LLMF at 6,000 h |
0.89 |
| Rated LLMF at 8,000 h |
0.88 |
| Rated LLMF at 12,000 h |
0.85 |
| Rated LLMF at 16,000 h |
0.83 |
| Rated LLMF at 20,000 h |
0.75 |
| UV protection |
Yes |
Dimensions & weight
| Diameter |
71.0 mm |
| Length |
156.0 mm |
| Product weight |
66.00 g |
Temperatures & operating conditions
| Maximum permitted outer bulb temperature |
350 °C |
| Maximum permitted base edge temperature |
210 °C |
Lifespan
| Rated lamp survival factor at 2,000 h |
0.99 |
| Rated lamp survival factor at 4,000 h |
0.99 |
| Rated lamp survival factor at 6,000 h |
0.98 |
| Rated lamp survival factor at 8,000 h |
0.97 |
| Rated lamp survival factor at 12,000 h |
0.97 |
| Rated lamp survival factor at 16,000 h |
0.95 |
| Rated lamp survival factor at 20,000 h |
0.78 |
| Lifespan B50 |
24000 h |
| Operation mode LLMF/LSF |
50 Hz |
Additional product data
| Base (standard designation) |
E27 |
| Design / version |
Coated |
| System guarantee level |
3 (2/5) |
| Mercury content |
6.3 mg |
Capabilities
| Dimmable |
Yes
|
| Burning position |
Any |
| Enclosed luminaire required |
Yes |
Certificates & standards
| Energy efficiency class |
A+ |
| Energy consumption |
62 kWh/1000h |
Country-specific categorizations
| ILCOS |
ME/UB-50/830-H/E/SL-E27-71/156 |
|
