K5K6J5

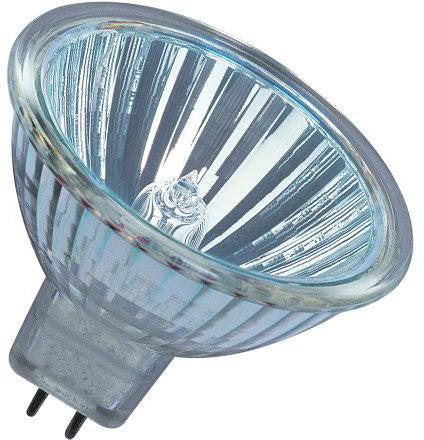

Osram Decostar 51 Titan Dimmable

Osram Decostar 51 Titan Dimmable

SKU SKU:4050300857596

Regular price $ 10.00 SGD
Regular price $ 11.00 SGD Sale price $ 10.00 SGD
Sale Sold out
Shipping calculated at checkout.
Power
Beam Angle

Request For Quote

Electrical data

Nominal wattage 20.00 W / 35 W / 50 W
Nominal voltage 12 V
Rated wattage 20.00 W / 35 W / 50 W
Power factor λ 1.00

Photometrical data

Nominal useful luminous flux 90° 210 lm - 770 lm
Luminous intensity [PIM] 2200 cd
Rated color temperature 2800 K
Light color (designation) Warm White
Color rendering index Ra 100
Lumen main.fact.at end of nom.life time 0.75
Color temperature 2800 K
Luminous flux 210 lm - 770 lm
Color rendering index Ra 100
Rated useful luminous flux 90° 210 lm - 770 lm
Rated peak intensity 480 cd

Light technical data

Beam angle 36 D / 24 D / 60 D / 10 D
Nominal beam angle 36 D / 24 D / 60 D / 10 D
Starting time 0.0 s
Warm-up time (60 %) 0.00 s
Rated beam angle (half peak value) 36D / / 24 D / 60 D / 10 D

Dimensions & weight

Diameter 51.0 mm
Length 46.0 mm
Overall length 46.0 mm
Outer bulb T9/MR51/
Maximum diameter 51.0 mm

Lifespan

Nominal lamp life time 4000 h
Rated lamp life time 4000 h
Number of switching cycles 100000

Additional product data

Base (standard designation) GU5.3
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Burning position Any
Dimmable Yes

Certificates & standards

Energy efficiency class C
Energy consumption 22 kWh/1000h
Energy efficiency class C

Country-specific categorizations

ILCOS HRGS//UB-20-12-GU5.3-51/36
View full details
