Moflash LEDA100 Buzzer Beacon, IP65 80dB Surface Mount, Wall Mount
Moflash LEDA100 Buzzer Beacon, IP65 80dB Surface Mount, Wall Mount
SKU SKU:LEDA100-01-02-10-17V
Low stock: 6 left
Couldn't load pickup availability
Share
Product Details

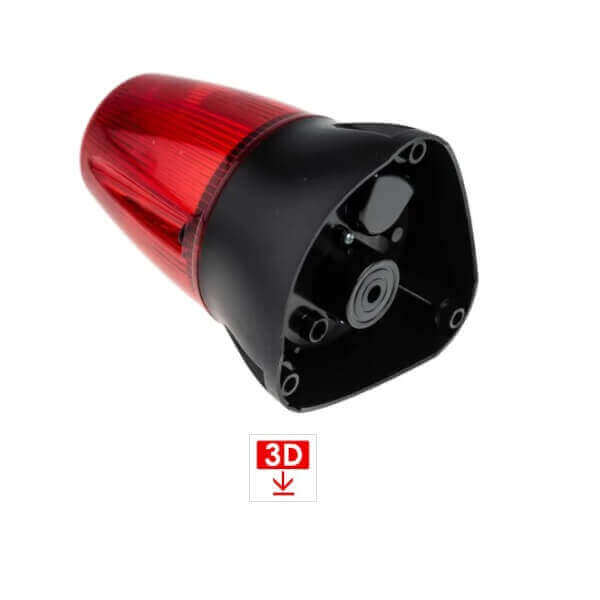

Moflash Red LED Buzzer Beacon, 80 dB, 20 to 30 V AC/DC - LEDA100 Series - LEDA100-02-02
Use this red LED (light-emitting diode) buzzer beacon from Moflash as a signalling tool in commercial and industrial situations. It combines a piezo buzzer and a light with selectable static or flashing modes.
A red lens colour makes this device useful as a clearly visible warning signal in the event of a machine failure or emergency. For versatility, it can be wall or surface mounted and comes with screw holes for easy installation.
• Low current consumption for improved energy efficiency
• IP (ingress protection) 65 rating for resistance to dust and low-pressure water jets
• Wide operating temperature range of -25°C to +55°C for use in demanding environments
• Base made of ABS (acrylonitrile butadiene styrene) plastic for resistance to impacts and corrosion
• Produces 80 dB (decibels) of sound for an easy-to-hear warning signal
Application Information
• Fire trucks
• Mechanical and automation industries
• Process and packaging plants
20 → 30 V, Red
| Attribute | Value |
|---|---|
| Supply Voltage | 20 → 30 V |
| Lens Colour | Red |
| Mounting Style | Surface Mount, Wall Mount |
| Current Type | AC, DC |
| Light Effect | Flashing |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 80dB |
| Series | LEDA100 |
| Bulb Type | LED |
| Housing Colour | Black |
| IP Rating | IP65 |
20 → 30 V , Amber
| Attribute | Value |
|---|---|
| Supply Voltage | 20 → 30 V |
| Lens Colour | Amber |
| Mounting Style | Surface Mount, Wall Mount |
| Current Type | AC, DC |
| Light Effect | Flashing |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 80dB |
| Series | LEDA100 |
| Bulb Type | LED |
| Housing Colour | Black |
| IP Rating | IP65 |
20 → 30 V ac/dc, Green
| Attribute | Value |
|---|---|
| Supply Voltage | 20 → 30 V ac/dc |
| Lens Colour | Green |
| Mounting Style | Surface Mount, Wall Mount |
| Current Type | AC, DC |
| Light Effect | Flashing |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 80dB |
| Series | LEDA100 |
| Bulb Type | LED |
| Housing Colour | Black |
| IP Rating | IP65 |
40 → 380 V dc, 85 → 285 V ac, Red
| Attribute | Value |
|---|---|
| Supply Voltage | 40 → 380 V dc, 85 → 285 V ac |
| Lens Colour | Red |
| Mounting Style | Surface Mount, Wall Mount |
| Current Type | AC, DC |
| Light Effect | Flashing |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 80dB |
| Series | LEDA100 |
| Bulb Type | LED |
| Housing Colour | Black |
| IP Rating | IP65 |
40 → 380 V dc, 85 → 285 V ac, Green
| Attribute | Value |
|---|---|
| Supply Voltage | 40 → 380 V dc, 85 → 285 V ac |
| Lens Colour | Green |
| Mounting Style | Surface Mount, Wall Mount |
| Current Type | AC, DC |
| Light Effect | Flashing |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 80dB |
| Series | LEDA100 |
| Bulb Type | LED |
| Housing Colour | Black |
| IP Rating | IP65 |
85 → 280 V ac, 85 → 380 V dc, Amber
| Attribute | Value |
|---|---|
| Supply Voltage | 85 → 280 V ac, 85 → 380 V dc |
| Lens Colour | Amber |
| Mounting Style | Surface Mount, Wall Mount |
| Current Type | AC, DC |
| Light Effect | Flashing |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 80dB |
| Series | LEDA100 |
| Bulb Type | LED |
| Housing Colour | Black |
| Maximum Decibel | 80dB |
| IP Rating | IP65 |
10 → 17 V, Amber
| Attribute | Value |
|---|---|
| Supply Voltage | 10 → 17 V |
| Lens Colour | Amber |
| Mounting Style | Surface Mount, Wall Mount |
| Current Type | AC, DC |
| Light Effect | Flashing |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 80dB |
| Series | LEDA100 |
| Bulb Type | LED |
| Housing Colour | Black |
| IP Rating | IP65 |
8 → 20 V ac/dc, Green
| Attribute | Value |
|---|---|
| Supply Voltage | 8 → 20 V ac/dc |
| Lens Colour | Green |
| Mounting Style | Surface Mount, Wall Mount |
| Current Type | AC, DC |
| Light Effect | Flashing |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 80dB |
| Series | LEDA100 |
| Bulb Type | LED |
| Housing Colour | Black |
| IP Rating | IP65 |
10 → 17 V ac/dc, Red
| Attribute | Value |
|---|---|
| Supply Voltage | 10 → 17 V ac/dc |
| Lens Colour | Red |
| Mounting Style | Surface Mount, Wall Mount |
| Current Type | AC, DC |
| Light Effect | Flashing |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 80dB |
| Series | LEDA100 |
| Bulb Type | LED |
| Housing Colour | Black |
| Maximum Decibel | 80dB |
| IP Rating | IP65 |
