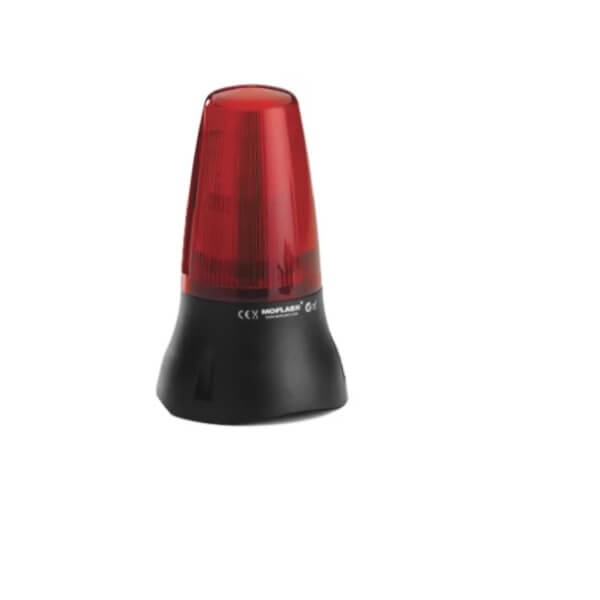

Moflash LEDA125 Buzzer Beacon 90dB Base Mount
Moflash LEDA125 Buzzer Beacon 90dB Base Mount
SKU SKU:LEDA125-02-02
13 in stock
Couldn't load pickup availability
Share
Compact LED Beacon / Buzzer Combination
The LEDA 125 Beacon / buzzer combination provides an audible and visual signal which is suitable for fire, security and industrial applications. These beacons offer three alternative light modes: Continuously ON, Rapid Flash (120 FPM) and Standard Flash (60FPM), which can be selected by a dip switch mounted lens side on the PCB. The base of the beacon / buzzer houses two Piezo sounders that are synchronised to the light mode. The AC units are supplied with one meter of flying lead, while the DC units allow for termination inside the base enclosure. An M12 sealing grommet in the base allows for cable entry.
Two signals in one
100000 hours life for LED
Continuously rated
48 LED array ultra bright
360° visibility
Continuously ON, rapid flash (120 FPM) or standard flash (60FPM)
3 point fixing
UV stable polycarbonate lens and ABS base
IP65 protection
RoHS compliant
CE marking
115 V ac, Amber
| Attribute | Value |
|---|---|
| Supply Voltage | 115 V ac |
| Lens Colour | Amber |
| Mounting Style | Base Mount |
| Current Type | AC |
| Light Effect | Flashing, Steady |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| Maximum Decibel | 90dB |
| Number Of Tones | 2 |
115 V ac, Red
| Attribute | Value |
|---|---|
| Supply Voltage | 115 V ac |
| Lens Colour | Red |
| Mounting Style | Base Mount |
| Current Type | AC |
| Light Effect | Flashing, Steady |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| Maximum Decibel | 90dB |
| Number Of Tones | 2 |
230 V ac , Red
| Attribute | Value |
|---|---|
| Supply Voltage | 230 V ac |
| Lens Colour | Red |
| Mounting Style | Surface Mount |
| Current Type | AC |
| Light Effect | Flashing, Steady |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| Number Of Tones | 1 |
| Attribute | Value |
|---|---|
| Supply Voltage | 230 V ac |
| Lens Colour | Amber |
| Mounting Style | Surface Mount |
| Current Type | AC |
| Light Effect | Flashing, Steady |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| IP Rating | IP65 |
| Number Of Tones | 1 |
230 V ac , Green
| Attribute | Value |
|---|---|
| Supply Voltage | 230 V ac |
| Lens Colour | Green |
| Mounting Style | Surface Mount |
| Current Type | AC |
| Light Effect | Flashing, Steady |
| Sounder Type | Electronic |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| Maximum Decibel | 90dB |
230 V ac, Blue
| Attribute | Value |
|---|---|
| Supply Voltage | 230 V ac |
| Lens Colour | Blue |
| Mounting Style | Base Mount |
| Current Type | AC |
| Light Effect | Flashing, Steady |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| Maximum Decibel | 90dB |
| Number Of Tones | 2 |
230 V ac, White
| Attribute | Value |
|---|---|
| Supply Voltage | 230 V ac |
| Lens Colour | White |
| Mounting Style | Base Mount |
| Current Type | AC |
| Light Effect | Flashing, Steady |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| Maximum Decibel | 90dB |
| Number Of Tones | 2 |
24 V dc, Red
| Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Lens Colour | Red |
| Mounting Style | Surface Mount |
| Current Type | DC |
| Light Effect | Flashing, Steady |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| Number Of Tones | 1 |
24 V dc, Blue
| Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Lens Colour | Blue |
| Mounting Style | Base Mount |
| Current Type | DC |
| Light Effect | Flashing, Steady |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| Maximum Decibel | 90dB |
| Number Of Tones | 2 |
24 V dc , White
| Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Lens Colour | White |
| Mounting Style | Base Mount |
| Current Type | DC |
| Light Effect | Flashing, Steady |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| Maximum Decibel | 90dB |
| Number Of Tones | 2 |
| Attribute | Value |
|---|---|
| Supply Voltage | 230 V ac |
| Lens Colour | Green |
| Mounting Style | Surface Mount |
| Current Type | AC |
| Light Effect | Flashing, Steady |
| Sounder Type | Electronic |
| Decibels at 1 Metre | 90dB |
| Series | LEDA125 |
| Bulb Type | LED |
| Housing Colour | Black |
| Maximum Decibel | 90dB |
