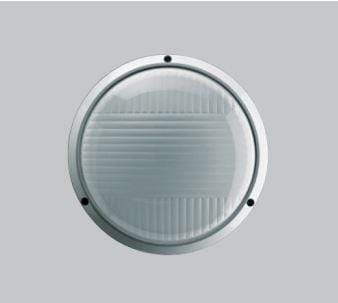

SIMES ROUND/SQUARE CEILING LIGHT (IP55)

Product Details:

PRODUCT TYPE

Wall mounted luminaire

Wattage 8.5W

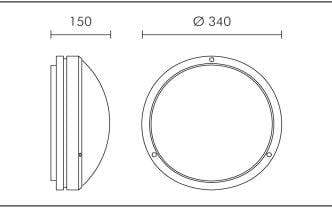

Size 340mm (Round)

Size 285mm (Square)

IP rating IP 55

MATERIAL CHARACTERISTICS

Aluminium die cast housing in EN AB-47100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Dutral gaskets. Painting Process : 3 Step Process

1) Surface treatment with BONDERITE .

A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating .

2) PRE POLYMERIZATION

A process of introducing an epoxy primer with excellent bonding characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content.

3) POLYMERIZATION

A process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Improved protection for Marine applications. Mechanical resistance of glass IK 06

LIGHTING PERFORMANCE

Reflector in 99.98% pure aluminium . Sand blasted glass diffuser (Vandalproof opal polycarbonate diffuser available on request). Lamp fixed position. LOR 56%

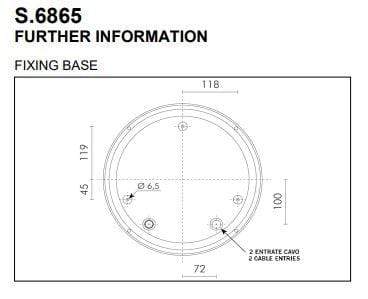

WIRING Supply double cable entry.

Isolation CLASS I .

Available colours WHITE (cod.01), BLACK (cod.09), ALUMINIUM GREY (cod.14).

Weight 3.71 Kg

Glow wire test 960°C

Lamp not included.
