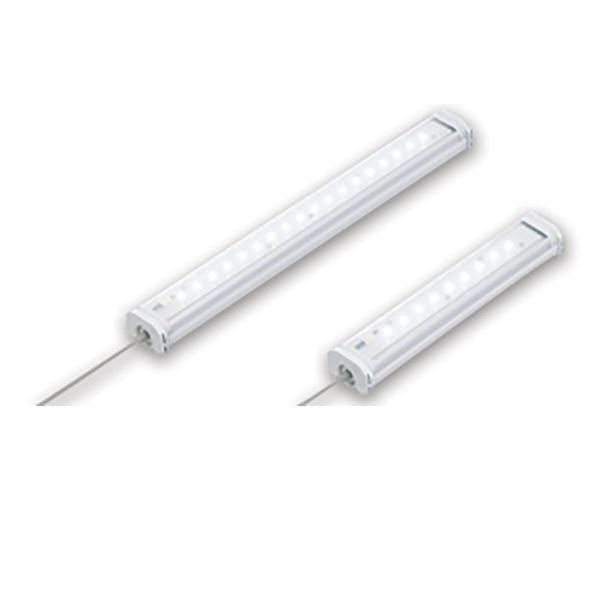

Idec 12/24V dc LF2B LED Illumination Unit White, 5500K, IP65
Idec 12/24V dc LF2B LED Illumination Unit White, 5500K, IP65
SKU:1824252
Low stock: 6 left
Couldn't load pickup availability
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
Contact Us
Contact Us
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
Share
Technical data sheets
Data Sheet
*Check stock before ordering. Lead time 4 working days.*
LF2B-C3P-BTHWW2-1M: Lead time 18 Weeks.*
Product Details
Super-bright and energy efficient LF2B LED strips have a wide range of input voltages either 100 - 240V AC or DC-battery compatible 12/24V DC with a choice of clear or white covers. These slim units can be used in many applications and installations where space is limited. With protection from water and dust the LF2B is can be used where water is being sprayed. Choice of two mounting brackets provide flexibility to locate these lights where needed. With a long life span, with approximately 54% less power consumption compared with fluorescent tube lighting, the LF2B series LED light strips are a bright choice now and in the future.
Input voltages either 100 - 240V AC or DC-battery compatible 12/24V DC
Slim units: 40mm (w) x 29mm (h). Using mounting brackets, one-step installation in a narrow space is possible.
Five Lengths (210/330/580/830/1,080mm) are offered to meet space requirements and illumination coverages
Bright and clear white LED illuminates the shapes and colours of target objects. (LF2B illuminance is approximately 25% higher than the LF1B.)
Two covers: clear or white
Waterproof, dustproof, suitable for use in wet locations
Specifications
LF2B-B3P-BTHWW2-1M - 210mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Illumination Unit |
| Voltage Rating | 12 / 24 V dc |
| Length | 210 mm |
| Width | 40 mm |
| Depth | 29 mm |
| Wattage | 2.6 W |
| Colour Temperature | 5500K |
| Light Colour | White |
| Current Rating | 215 mA |
| Series | LF2B |
| Diffuser Finish | Clear |
| Model | LF2B-B3P-BTHWW2-1M |
| Lamp Supplied | Yes |
| Standards Met | CE, cULus Lisited |
LF2B-B4P-BTHWW2-1M - 210mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Illumination Unit |
| Voltage Rating | 12 / 24 V dc |
| Length | 210 mm |
| Width | 40 mm |
| Depth | 29 mm |
| Wattage | 2.6 W |
| Colour Temperature | 5500K |
| Light Colour | White |
| Diffuser Finish | White |
| Model | LF2B-B4P-BTHWW2-1M |
| Lamp Supplied | Yes |
| Standards Met | CE, cULus Lisited |
| Series | LF2B |
| Current Rating | 215 mA |
LF2B-C3P-BTHWW2-1M - 330mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Illumination Unit |
| Voltage Rating | 12 / 24 V dc |
| Length | 330 mm |
| Width | 40 mm |
| Depth | 29 mm |
| Wattage | 4.9 W |
| Colour Temperature | 5500K |
| Light Colour | White |
| Current Rating | 409 mA |
| Series | LF2B |
| Standards Met | CE, cULus Lisited |
| Lamp Supplied | Yes |
| Model | LF2B-C3P-BTHWW2-1M |
| Diffuser Finish | Clear |
LF2B-C4P-BTHWW2-1M - 330mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Illumination Unit |
| Voltage Rating | 12 / 24 V dc |
| Length | 330 mm |
| Width | 40 mm |
| Depth | 29 mm |
| Wattage | 4.9 W |
| Colour Temperature | 5500K |
| Light Colour | White |
| Lamp Supplied | Yes |
| Standards Met | CE, cULus Lisited |
| Current Rating | 409 mA |
| Series | LF2B |
| Model | LF2B-C4P-BTHWW2-1M |
| Diffuser Finish | White |
LF2B-D3P-BTHWW2-1M - 580mm
| Attribute | Value |
| Lamp Type | LED |
| Type | LED Illumination Unit |
| Voltage Rating | 12 / 24 V dc |
| Length | 580 mm |
| Width | 40 mm |
| Depth | 29 mm |
| Wattage | 10.6 W |
| Colour Temperature | 5500K |
| Light Colour | White |
| Series | LF2B |
| Current Rating | 880 mA |
| Standards Met | CE, cULus Lisited |
| Model | LF2B-D3P-BTHWW2-1M |
| Diffuser Finish | Clear |
| Lamp Supplied | Yes |
