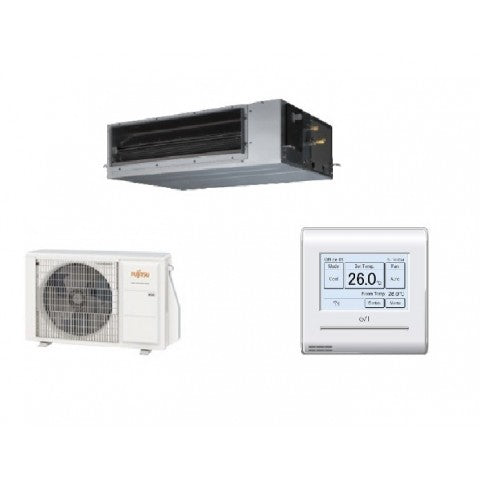

Name: Fujitsu System 4 Multi-Zone Ducted Inverter Aircon - 5 Ticks
Brand: A5
SKU: SYS4AOAH30CBTA414
Price: 1867.0 SGD
Availability: InStock

FOR INSTALLATION SERVICE CLICK HERE

Product Description:

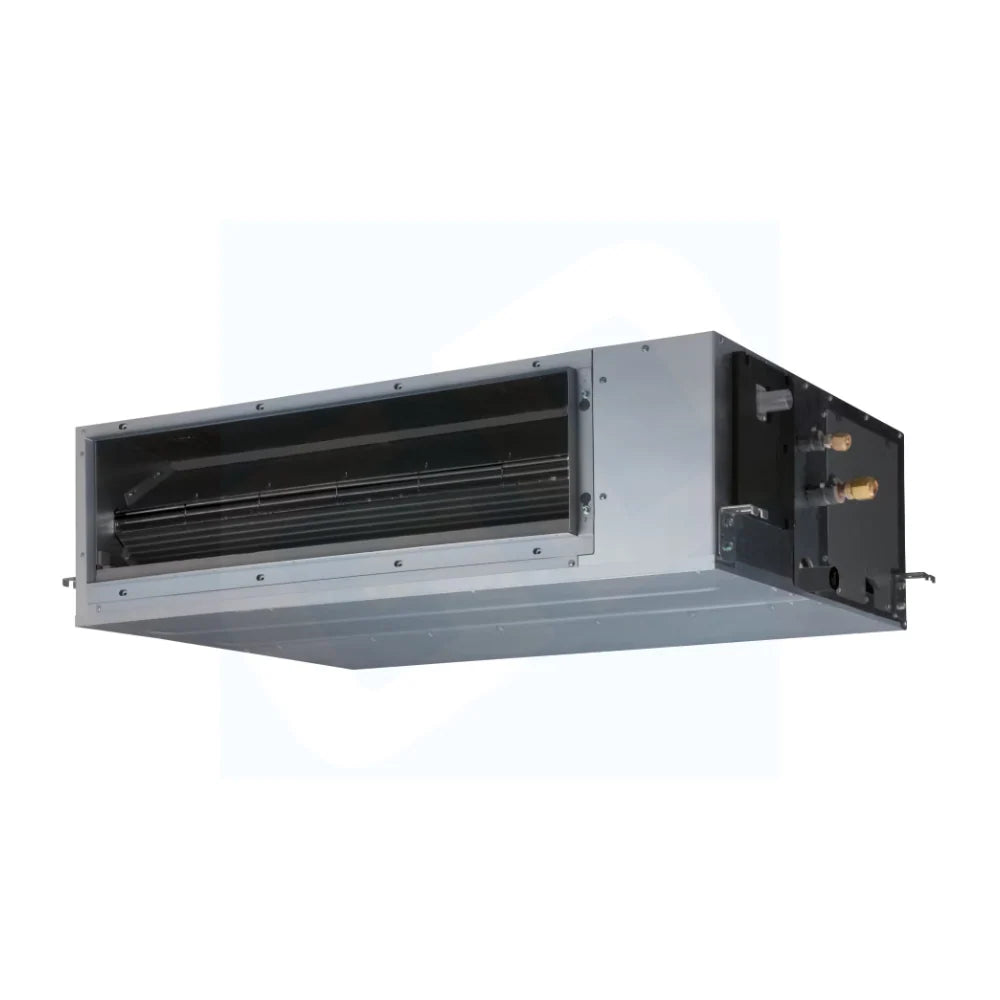

Fujitsu System 4 Multi-Zone Ducted Air Conditioning

System 4 supports up to four indoor ducted units, enabling efficient zoned cooling for residential or light commercial properties. The system features:

R32 refrigerant for eco-friendly performance
5‑Tick NEA energy rating for excellent efficiency
Inverter compressor delivering quiet, precise temperature control
Advanced air filtration: Apple‑Catechin antibacterial, ion deodorization, and PM2.5/anti-virus layers

System 4 (AOAH30CBTA4)	Indoor Units (ARAH‑CSLAP)	Total Cooling Capacity
4 × ARAH‑09 (9k BTU each)	G4 configuration: 9k × 4	~36,000 BTU (~10.5 kW)
3 × 9k + 1 × 12k	Three ARAH‑09 + one ARAH‑12	~39,000 BTU (~11.4 kW)
3 × 9k + 1 × 18k	Three ARAH‑09 + one ARAH‑18	~45,000 BTU (~13.2 kW)
3 × 9k + 1 × 24k	Three ARAH‑09 + one ARAH‑24	~51,000 BTU (~14.9 kW)
2 × 9k + 2 × 12k	Two ARAH‑09 + two ARAH‑12	~42,000 BTU (~12.3 kW)
2 × 9k + 12k + 18k	Two ARAH‑09 + one ARAH‑12 + one ARAH‑18	~48,000 BTU (~14.1 kW)
2 × 9k + 12k + 24k	Two ARAH‑09 + one ARAH‑12 + one ARAH‑24	~51,000 BTU (~15.0 kW)
1 × 9k + 3 × 12k	One ARAH‑09 + three ARAH‑12	~45,000 BTU (~13.2 kW)
4 × ARAH‑12 (12k BTU each)	All four ARAH‑12 units	~48,000 BTU (~14.1 kW)

Indoor unit BTU ratings reflect nominal capacities: 9k ≈ 2.7 kW, 12k ≈ 3.5 kW, 18k ≈ 5.0 kW, 24k ≈ 6.8 kW.

Technical Specs for AOAH30CBTA4

Rated Cooling Capacity: 7.5 kW (range 2.4–11.0 kW)
Outdoor Dimensions: 884 × 820 × 315 mm; Weight ~58 kg
Power Supply: Single-phase 230 V, 50 Hz; Suitable for multi-room zoning (2–4 indoor units)
Pipe Length Support: Max 70 m total, with up to 25 m per indoor unit; height differential max ~15 m
