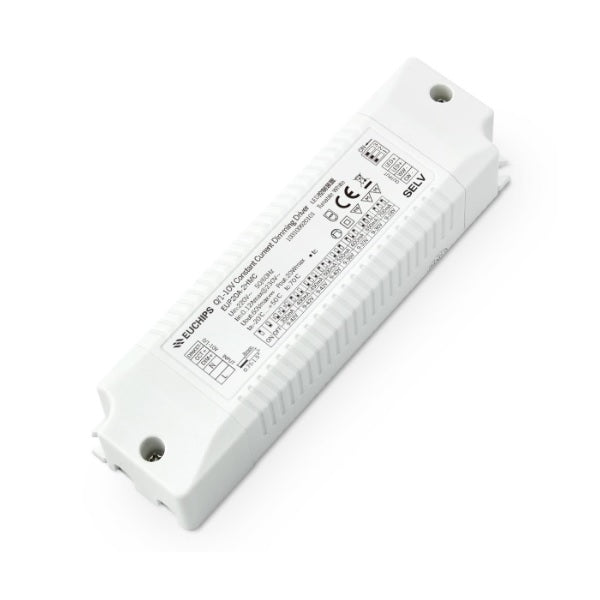

Euchips 20W 350~700mA CC 0/1-10V Driver EUP20A-2HMC Constant Current Driver
Euchips 20W 350~700mA CC 0/1-10V Driver EUP20A-2HMC Constant Current Driver
SKU SKU:103100920101
Regular price
$ 40.00 SGD
Regular price
$ 43.00 SGD
Sale price
$ 40.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Technical Details:
Datasheet for EUP20A-2HMC
EUP20A-2HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch.
Features
1. Two channel output, output current level selectable by DIP S.W.
2. High efficiency up to 85%
3. Built-in active PFC function
4. Protections: Short circuit, over load, over Voltage
5. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP20A-2HMC | |
| Input | Efficiency | >85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.12Amax@230VAC | |
| Inrush Current(max) | Cold start,10A(twidth=14us measured at 50% Ipeak)@220VAC | |
| Standby power | <0.5W | |
| Output | Current(mA)/Voltage (VDC) Power(W) |
350mA/9-42VDC/14.7W 400mA/9-42VDC/16.8W 450mA/9-42VDC/18.9W 500mA/9-40VDC/20W 550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W 650mA/9-30VDC/19.5W 700mA/9-28VDC/19.6W |
| Ripple Current | <3% | |
| Channel | 2 | |
| Current Tolerance | ±5% | |
| No load output voltage | 60V Max | |
| Turn on delay Timee | <1s, at230Vac | |
| Function | Dimming Type | 0/1-10V |
| Dimming Range | 0%-100% Dimming to off | |
| Color temperature | 3000k-6000k | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over Voltage | Close output, recovers automatically after fault removed. | |
| Safety & EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 70℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 110g±5%/PCS; 50PCS/Carton; 6.3kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | |
| Dimension | 150*43*29mm（L*W*H） | |
