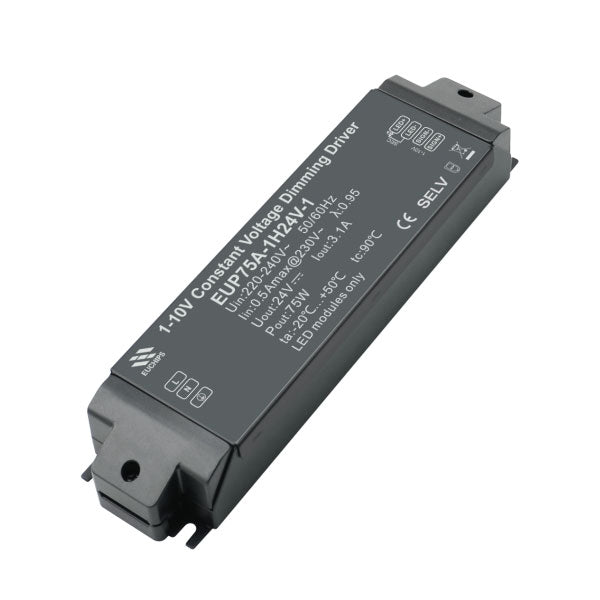

Euchips 75W 24VDC 1-10V LED Constant Voltage Dimmable Driver EUP75A-1H24V-1 X10pcs
Euchips 75W 24VDC 1-10V LED Constant Voltage Dimmable Driver EUP75A-1H24V-1 X10pcs
SKU SKU:103200091101
Couldn't load pickup availability
Share
Technical Details:
75W 24VDC 1-10V LED Constant Voltage Dimmable Driver EUP75A-1H24V-1
EUP75A-1H24V-1 is a constant voltage mode output LED driver. This driver can be controlled by external signal (0/1-10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect.
Feature
1. Single channel constant voltage, 24VDC output, 3.1A max
2. Support 3-in-1 dimming mode( 1-10V active signal, adjustable resistance and PWM signal)
3. Dimming range of 0-100%, and dimming effect smooth, no flicker
4. High input voltage of 220~240VAC
5. 100% output when no dimming signal input, can be used as normal power supply
6. Over load protection, over voltage protection, short circuit protection; over temperature protection
7. IP20, suitable for indoor LED lighting application
Technical Parameter
| Model | EUP75A-1H24V-1 | |
| Input | Efficiency | >85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| AC Current(max) | 0.5Amax@230VAC | |
| Inrush Current(max) | Cold start,40A@230VAC | |
| Output | Current / Voltage / Power | 3.1A/24VDC/74.4W |
| R & N (Max) | 200mVp-p | |
| Channel | 1 | |
| Voltage Accuracy | ±3% | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | Hiccup, recovers after fault condition is removed |
| Over Load | Hiccup, recovers after fault condition is removed | |
| Over voltage | Hiccup, recovers after fault condition is removed | |
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 460g±5%/PCS; 20PCS/Carton;10.5kg±5%/Carton; Carton Size: 244*223*199mm(L*W*H) | |
| Dimension | 213*54*33mm（L*W*H） | |
