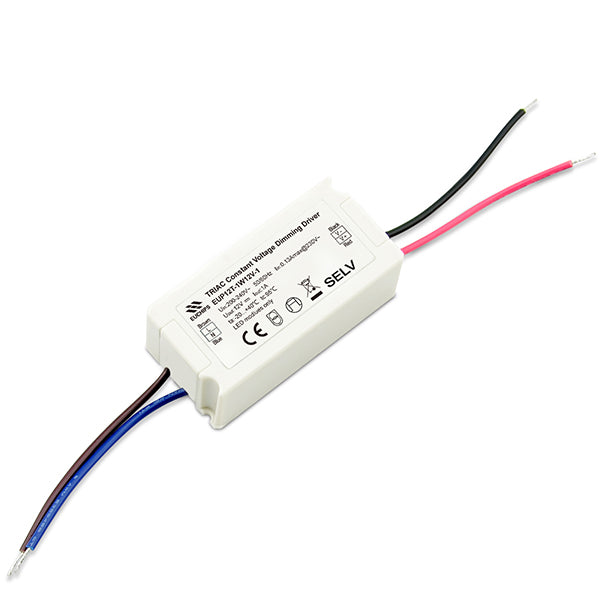

Euchips 12W 12VDC 1A*1ch Constant Voltage Driver EUP12T-1W12V-1
Euchips 12W 12VDC 1A*1ch Constant Voltage Driver EUP12T-1W12V-1
SKU SKU:104200021201
Regular price
$ 17.00 SGD
Regular price
$ 18.00 SGD
Sale price
$ 17.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Technical Details:
Feature
1. Single-channel constant voltage output,12ADC
2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer
3. Dimming range from 40VAC to 240V AC
4. Dimming effect smooth, no flicker
5. Over power protection; Over voltage protection
6. Suitable for indoor LED lighting application
Technical Parameter
| Model | EUP12T-1W12V-1 | ||
| Input | Efficiency | 200VAC-240VAC | |
| Frequency | 50/60Hz | ||
| Current | 0.13Amax@230VAC, Full load | ||
| Dimming voltage range | 40-240VAC | ||
| Inrush Current | 12A @230VAC | ||
| Output | Current/Voltage/Power | 1A/12VDC/12W | |
| Ripple Current | 120mVp-p | ||
| Channel | 1 | ||
| Voltage Tolerance | ±3% | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Over Power | Hiccup mode, recovers after fault condition is removed | |
| Over voltage | Close output, recovers after fault condition is removed | ||
| Others | Working Temp | -20℃~40℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 85g±5%/PCS; 100PCS/Carton; 9kg±5%/Carton; Carton Size: 388*265*219mm(L*W*H) | ||
| Dimension | 73*36*29mm(L*W*H) | ||
