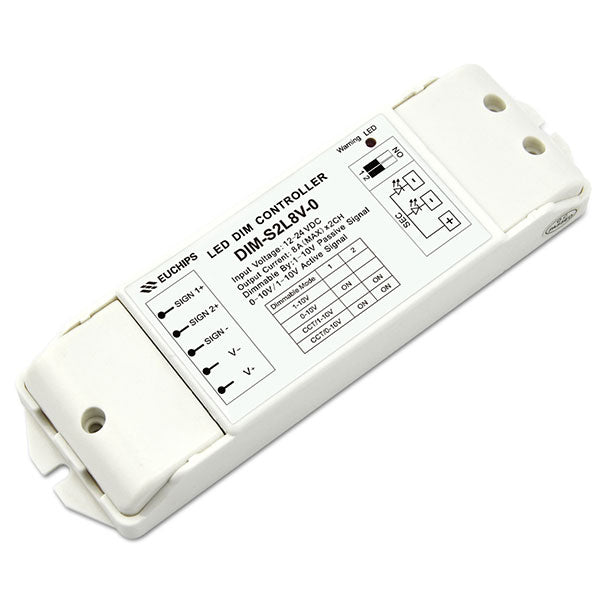

Euchips 12-24VDC 0-10V analog constant voltage led dimmer DIM-S2L8V-0
Euchips 12-24VDC 0-10V analog constant voltage led dimmer DIM-S2L8V-0
SKU SKU:DIM-S2L8V-0
Regular price
$ 83.00 SGD
Regular price
$ 89.00 SGD
Sale price
$ 83.00 SGD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Technical Details
Feature
1. Support 3-in-1 dimming function(0-10V /1-10V active signal, Adjustable resistance, PWM)
2. Support dimming mode selection
3. Support the short circuit, over current protection and alarm function
4. Logarithmic dimming curve
5. Built-in CCT adjust mode, the user can adjust color temperature without changing the output power
6. For adjusting the brightness/ color temperature of LED strip
Technical Parameter
| Product Name | 12-24VDC 0-10V analog constant voltage led dimmer |
| Model | DIM-S2L8V-0 |
| Input voltage | 12-24VDC |
| Output voltage | 12-24VDC |
| Output current | 8A*2CH(For brightness mode) Totally 8A（For CCT mode） |
| Over current protection | The red indicator light is on, recovers automatically after fault removed |
| Short circuit protection | The red indicator light is on, recovers automatically after fault removed |
| Dimming mode | 0-10V /1-10V active signal/Adjustable resistance/PWM |
| Current consumption of 0-10/1-10V signal | 0.25mA |
| Dimension | 167*51*23mm（L*W*H） |
| G.W. | 100g |
